Name: Weekender ISW 200 Watt Solar for RV
SKU: 424563

Product Details ＋

The Weekender ISW System combines our largest single Solar Kit and our most popular pure sine wave inverter, for a complete RV power package. The result is an economical yet powerful way to have most of the comforts you need wherever you dry camp. Like the and systems, it features all of the components that will allow convenient access to AC or solar power through your breaker panel, and the ability to charge batteries from both shore and solar power.

A Go Power! Smart Converter Charger is not included in this package; however, the system will easily integrate with your vehicle's stock converter. The WEEKENDER ISW* is easily expandable into a full-time system, with the addition of one or more (up to 600 watts).

*Best paired with Battery Power, or 100 Ah of Power.

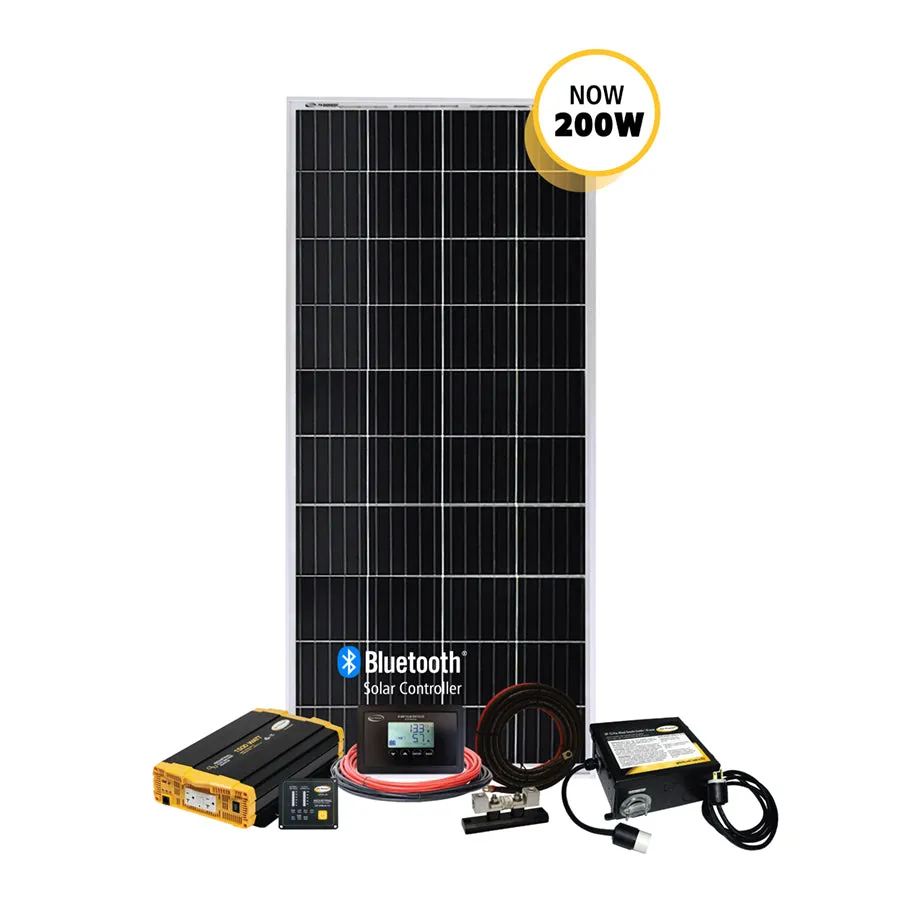

Included in the Weekender ISW System:

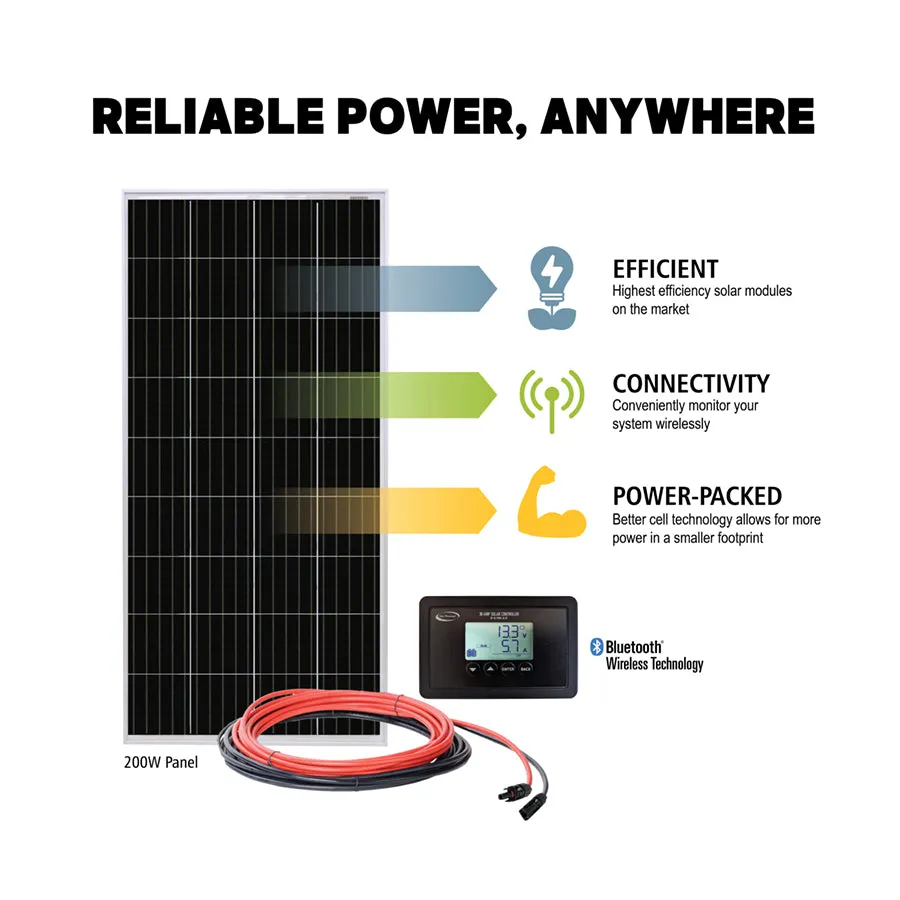

Overlander solar charging kit ()

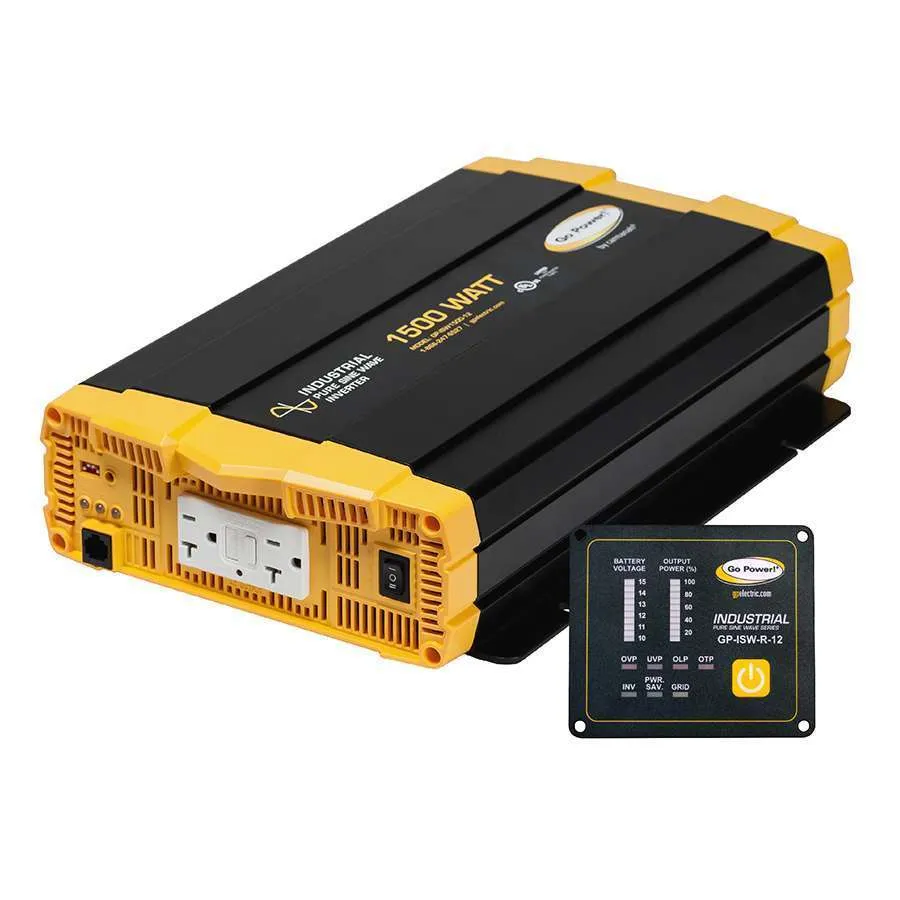

1500 watt industrial pure sine wave inverter for AC power ()
30-amp single-bank, Bluetooth® PWM Solar Controller ()**
Inverter on/off remote ()

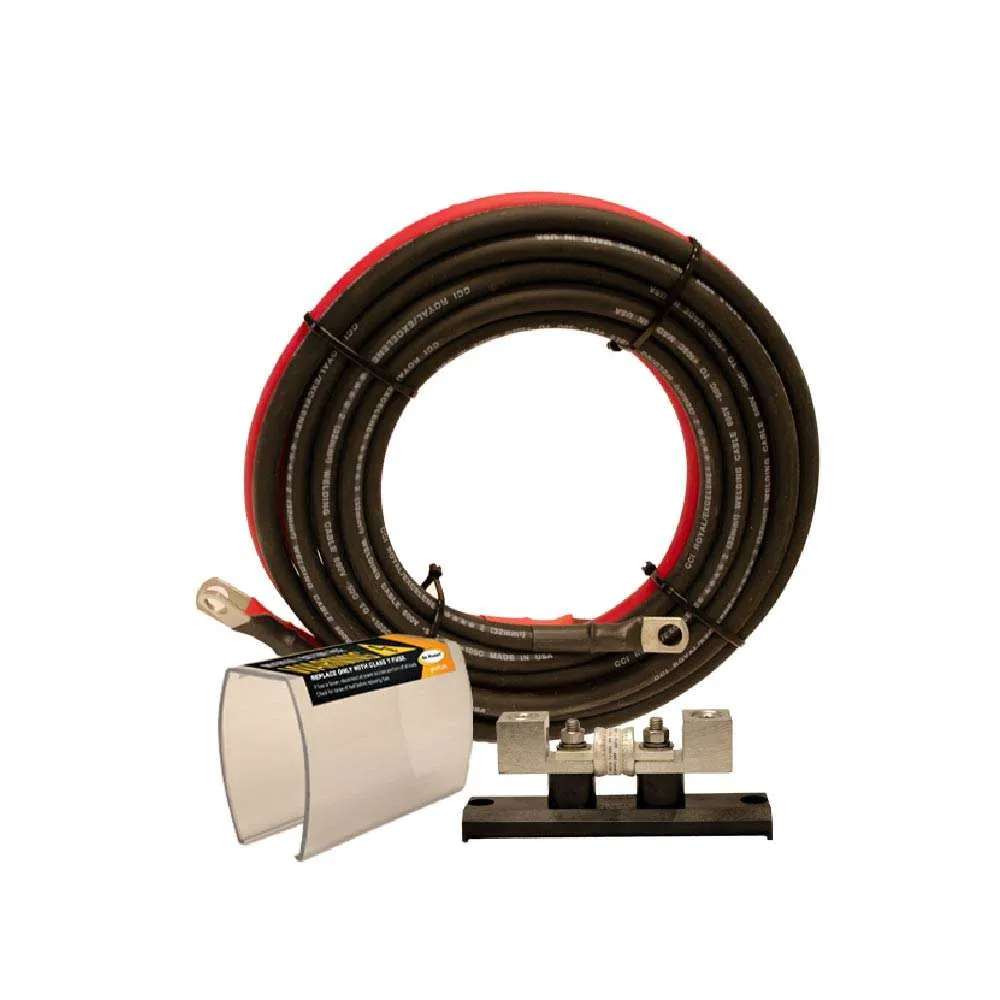

DC Inverter Install Kit ()

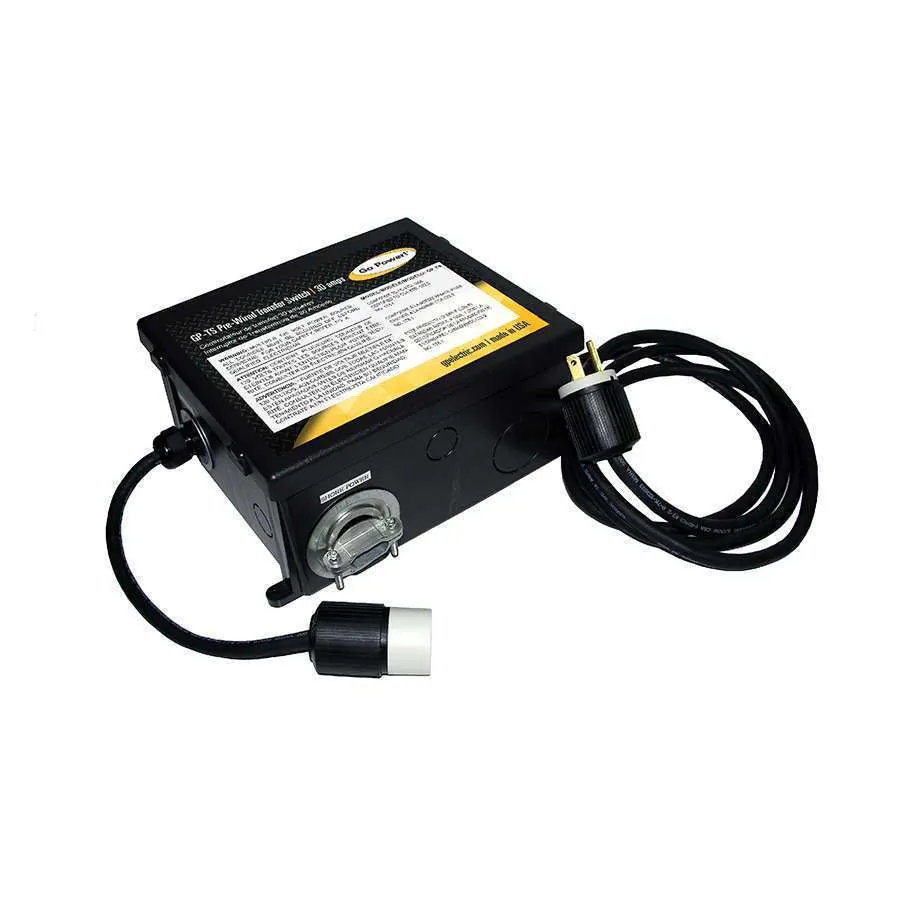

30 amp pre-wired Transfer Switch (GP-TS-30)

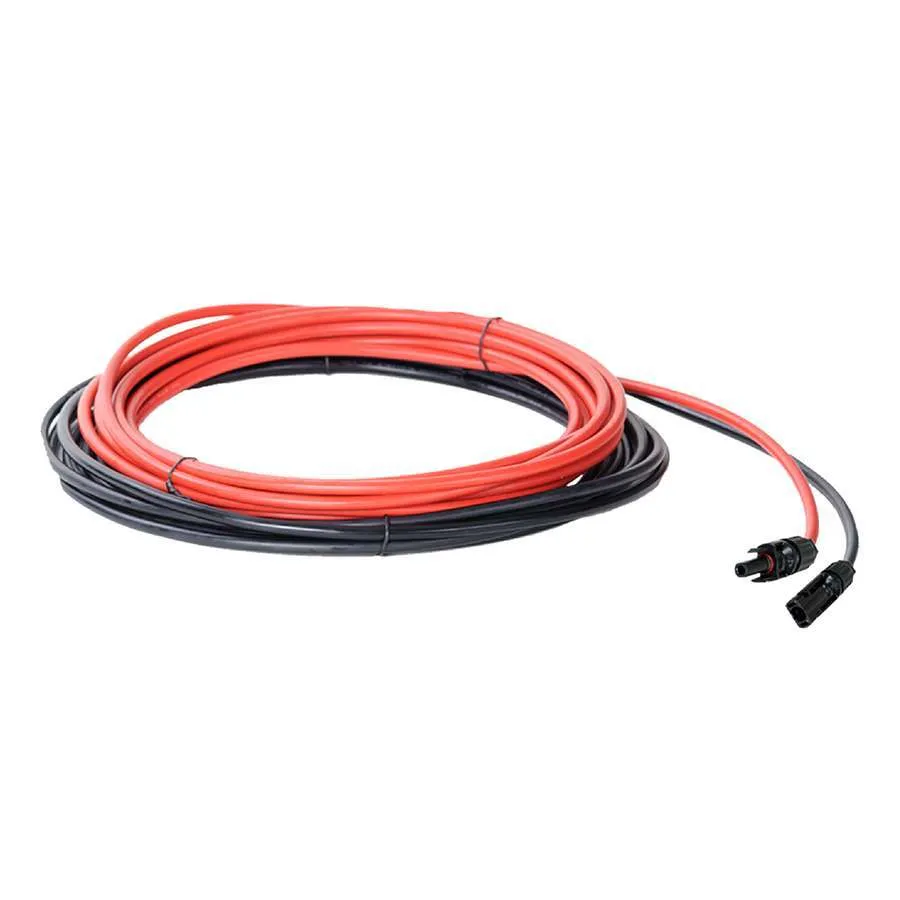

1 x 25′ of MC4 output cable (#10) red & 1 x 25’ of MC4 output cable (#10) black and all mounting hardware (1 x 4-KB)

*The Weekender system is compatible with 30-amp service. For a 50-amp service, consider upgrading to a charging system.

*If you have the GP-PWM-30-UL controller WITH Bluetooth, please for the User Manual and Spec Sheet.

**If you have the GP-PWM-30-UL controller WITHOUT Bluetooth, please for the User Manual and Spec Sheet.

Advanced Solar Technology

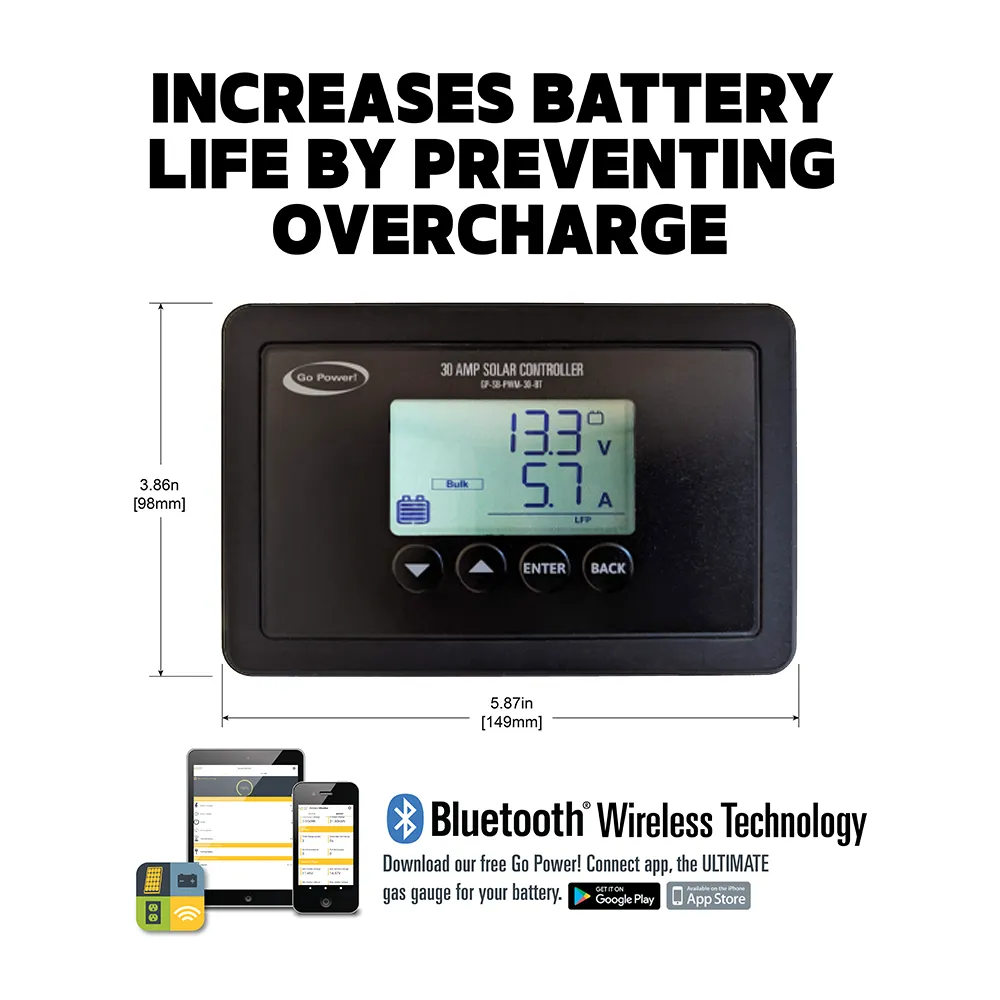

The Bluetooth®-enabled, GP-SB-PWM-30BT is a 12 volt flush-mounted, single-bank, photo-voltaic (PV) charge controller rated for a continuous solar current input of 30 amps. Easy to install with screw cover plate, and features improved Bluetooth® performance for remote system monitoring. Included in most popular kits. Available in Wired for Solar™ pre-wired RVs.

Complete Solar Inverter System Comparison


Output power	600 W / 27.9 A	400 W / 18.6 A	200 W / 9.3 A
Inverter power	3000 W	2000 W	1500 W
Solar controller	30 A, Bluetooth®, PWM	30 A, Bluetooth®, PWM	30 A, Bluetooth®, PWM
Inverter remote	On/off, LED monitoring	On/off, LED monitoring	On/off, LED monitoring
Smart Converter Charger	125 A	100 A	-
Transfer switch	50 A	50 A	30 A
Inverter Fuse and Cable Kit	400 A fuse, 4/0 cable	300 A fuse, 2/0 cable	200 A fuse, #2 cable

SPECIFICATIONS

Solar Modules and Controller

Solar cell type	Monocrystalline
Output power	200 W
Rated current	9.3 A
Rated DC voltage	18.6 V
Open-circuit voltage	24.09 V
Module efficiency	16.4%
Connectivity	MC4 connectors
Solar controller	30 A PWM, multi battery option, 4 stage charging, digital display and flush mount
Frame type	Clear anodized aluminum frame
Certifications	CE

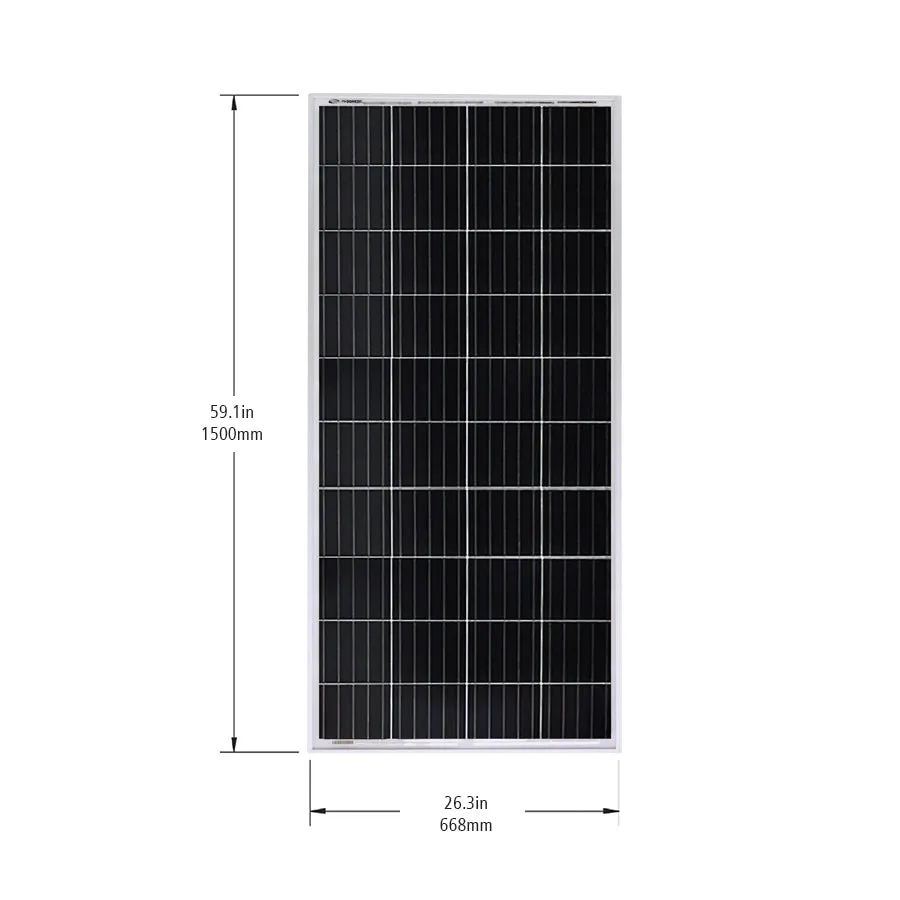

Dimensions	59.1 x 26.3 x 1.57 in / 1500 x 668 x 40 mm
Weight	32 lbs / 14.5 kg
Warranty	25 years power output (module) / 5 years (controller)

Inverter, Fuse Kit and Remote

Output waveform	Pure sine wave
Continuous output power	1500 W
Surge rating	2000 W
Inverter voltage (DC)	12 V
Output voltage (AC)	100 - 120 VAC RMS
Input voltage (DC)	10.5 - 16.5 VDC
Remote	On/off switch and flush mount
Fuse Kit	#2 cable and 200 A inverter fuse
Certifications (inverter)	UL, CUL, CE, FCC
Dimensions	13.0 x 7.9 x 3.3 in / 330 x 200 x 83 mm
Weight	5.7 lbs / 2.6 kg
Warranty	2 years
