COMPACT MOISTURE METER KIT FOR MEASURING MOISTURE CONTENT AND DEW-POINT OF CONCRETE FLOORS AND SLABS FOR COATINGS APPLICATION
WITH ACCOMPANYING BLUETOOTH APP

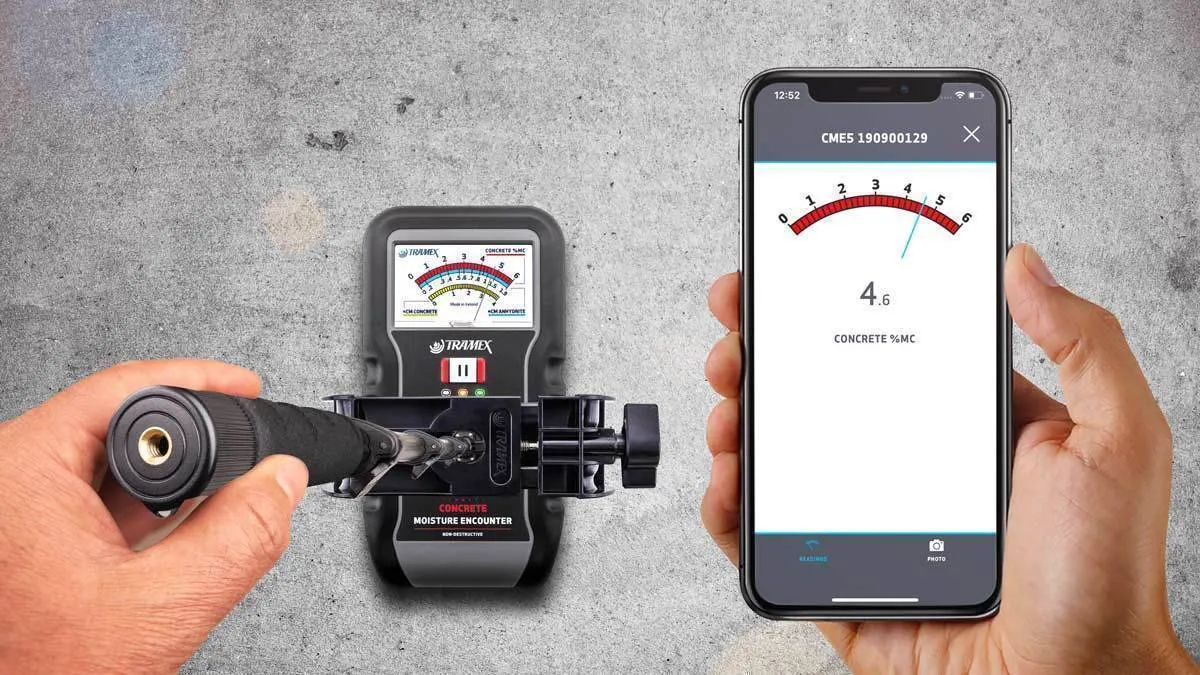

The Tramex CCTK is a compact kit for instant, non-destructive, quantitative moisture content testing of concrete floors and ambient conditions and is the ideal non-destructive test kit for monitoring the most crucial information at the time of application. The Tramex CME5 moisture meter allows for non-destructive quantitative testing of concrete using Gravimetric testing as a baseline and comparative testing per ASTM F2659. The Tramex Feedback Datalogger is used for testing, monitoring and time logging ambient relative humidity, temperature and dew point. The Tramex Contact Temperature Probe provides temperature readings of the floor surface. The Tramex Concrete Coatings Installer Tech Kit comes with an extension handle in a Tramex Easy-travel case. Bluetooth connectivity to the Tramex Meters App allows for visualization of readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.

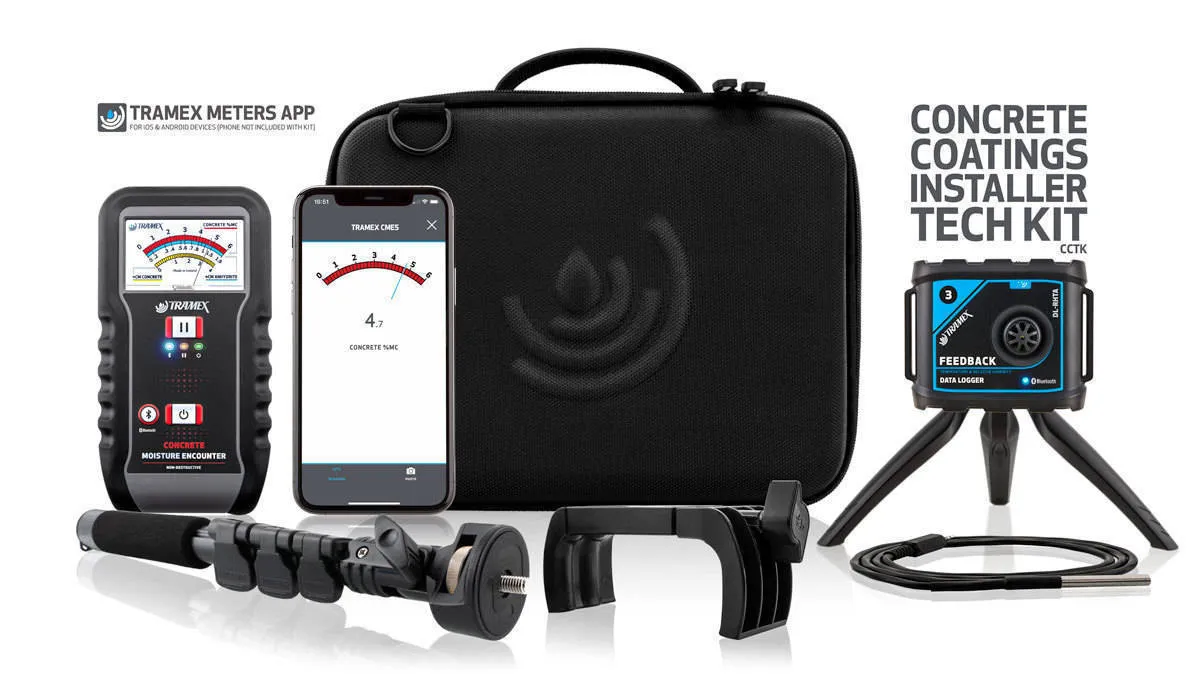

Kits Includes
- Concrete Moisture Encounter 5 - CME5.
- Feedback Datalogger DL-RHTA.
- Free App available for Android and iOS (phone not included).
- Contact Temperature Probe.
- Extension Handle.

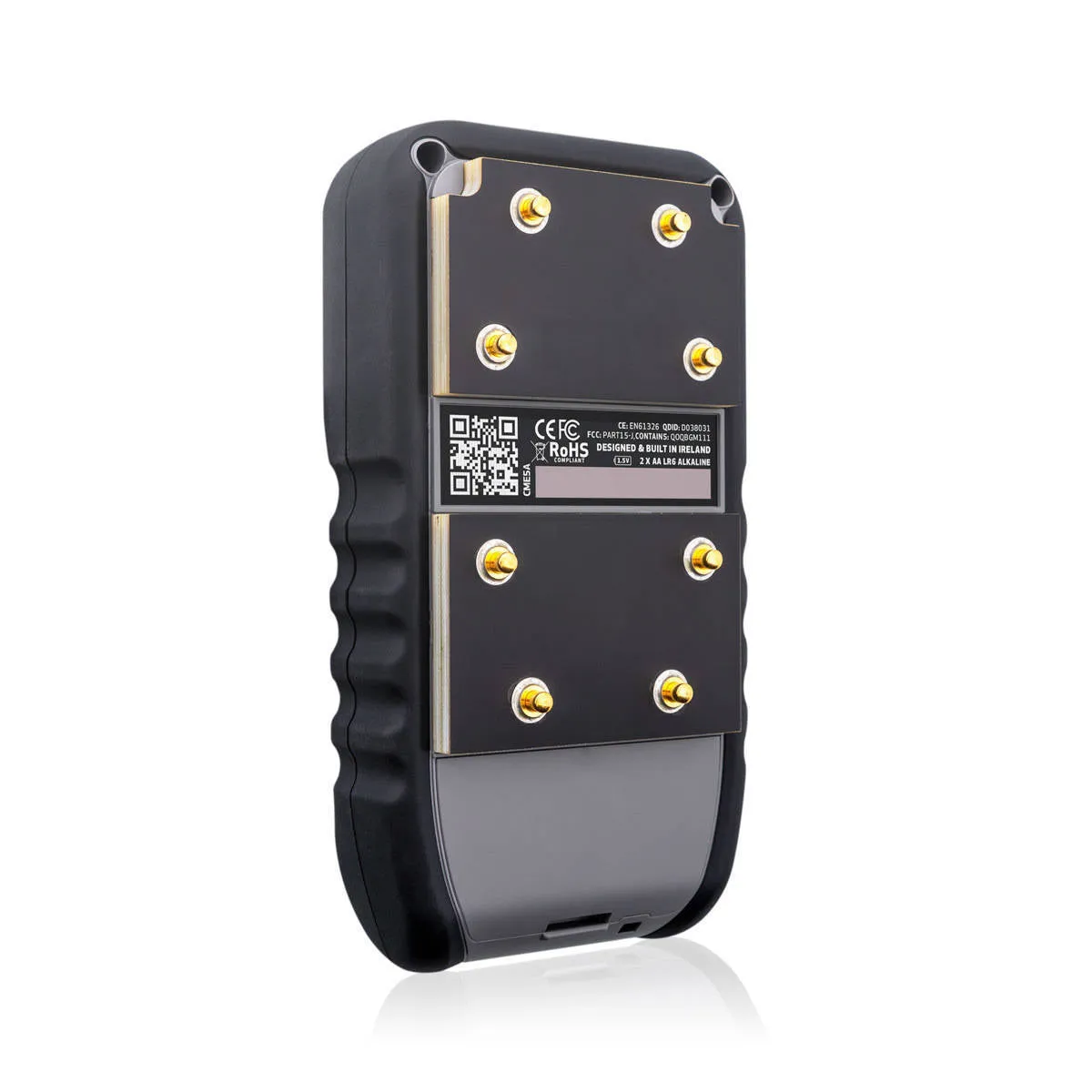

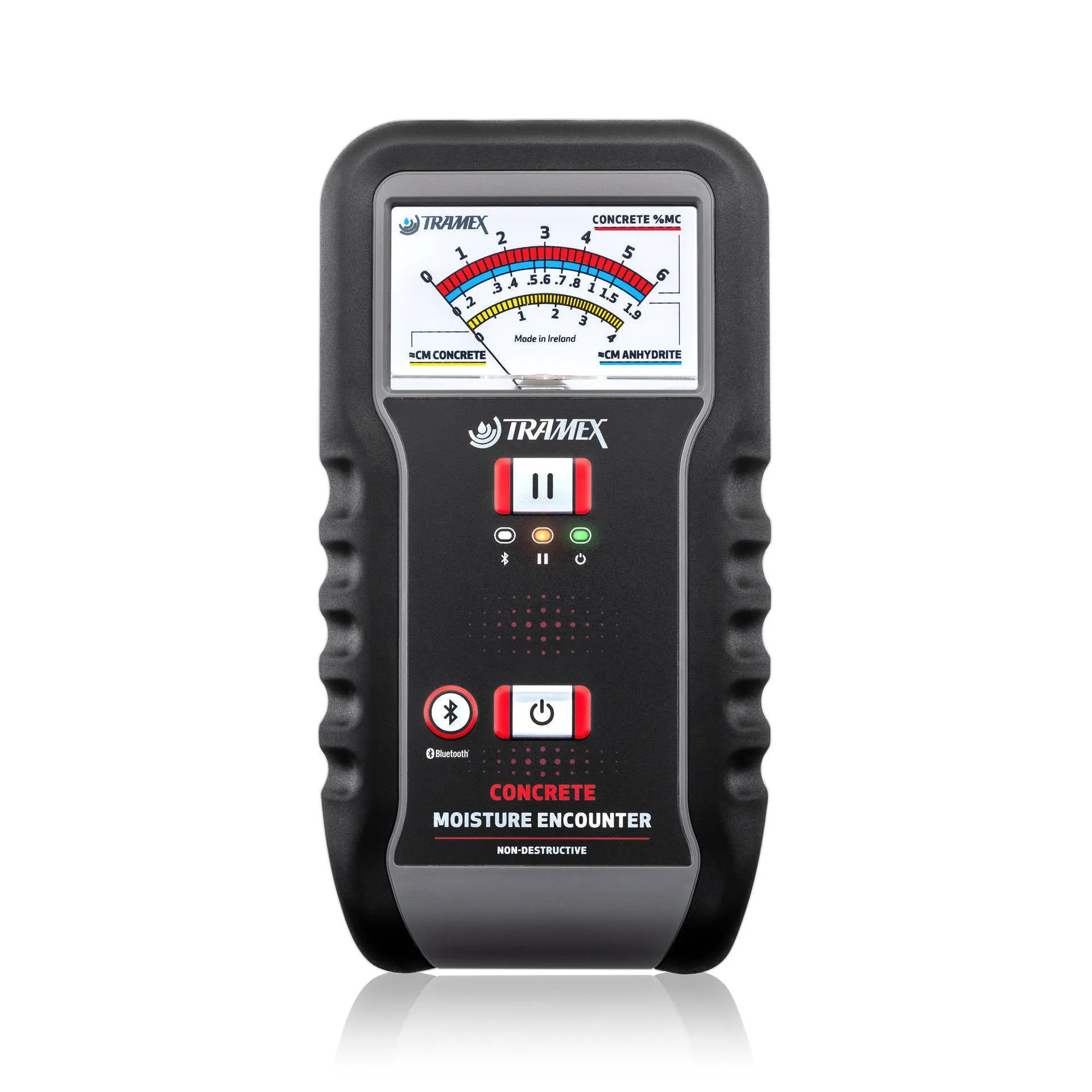

CONCRETE MOISTURE ENCOUNTER 5 - CME5 - MEASURING RANGE:
- Depth of penetration: approx. 20 mm (¾")
- Moisture Content for Concrete: 0 → 6%
- Carbide Method moisture content equivalent for Anhydrite : 0→ 1.9
- Carbide Method moisture content equivalent for Concrete : 0 → 4

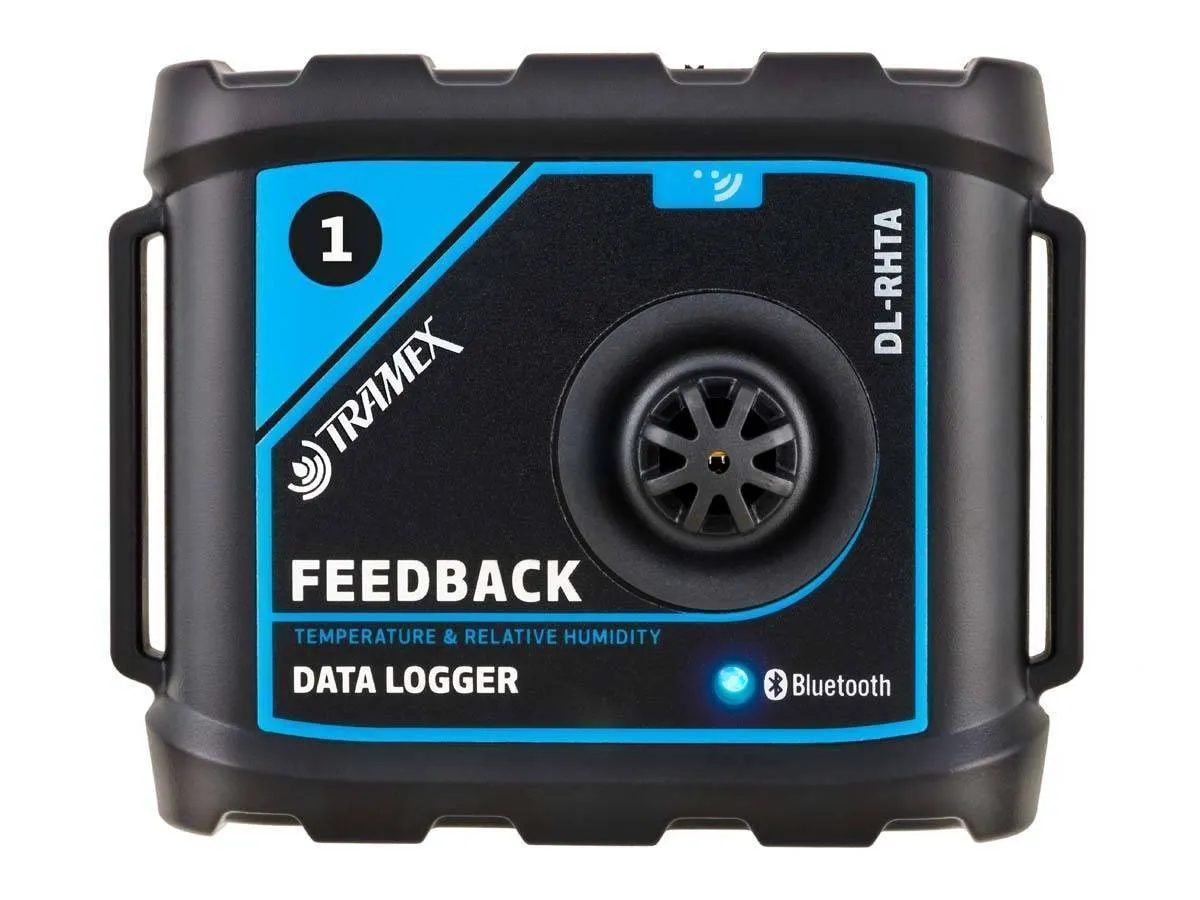

FEEDBACK DATALOGGER DL-RHTA MEASURING RANGE:
- Memory: 100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
- Logging Rate: Logger interval adjustable between 5 minutes and 1 hour
- Transmission Range: Up to 50m (165ft) line-of-sight
- Bluetooth: BLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising
RELATIVE HUMIDITY SENSOR SPECIFICATIONS:
- Range: 0 to 100% RH
- Accuracy: ±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 25ºC (77ºF))
- Resolution: 0.1% over the complete range
- Drift: <0.25%RH per year
TEMPERATURE SENSOR SPECIFICATIONS:
- Range: -40ºC to 125ºC (-40ºF to 257ºF)
- Accuracy: ±0.1 °C Range 20°C to 60°C (±0.1ºF Range 68ºF to 140ºF)
- Sensor Protection: PTFE Film protects sensor opening from water & dust
- Drift: <0.03ºC (0.04ºF) per year

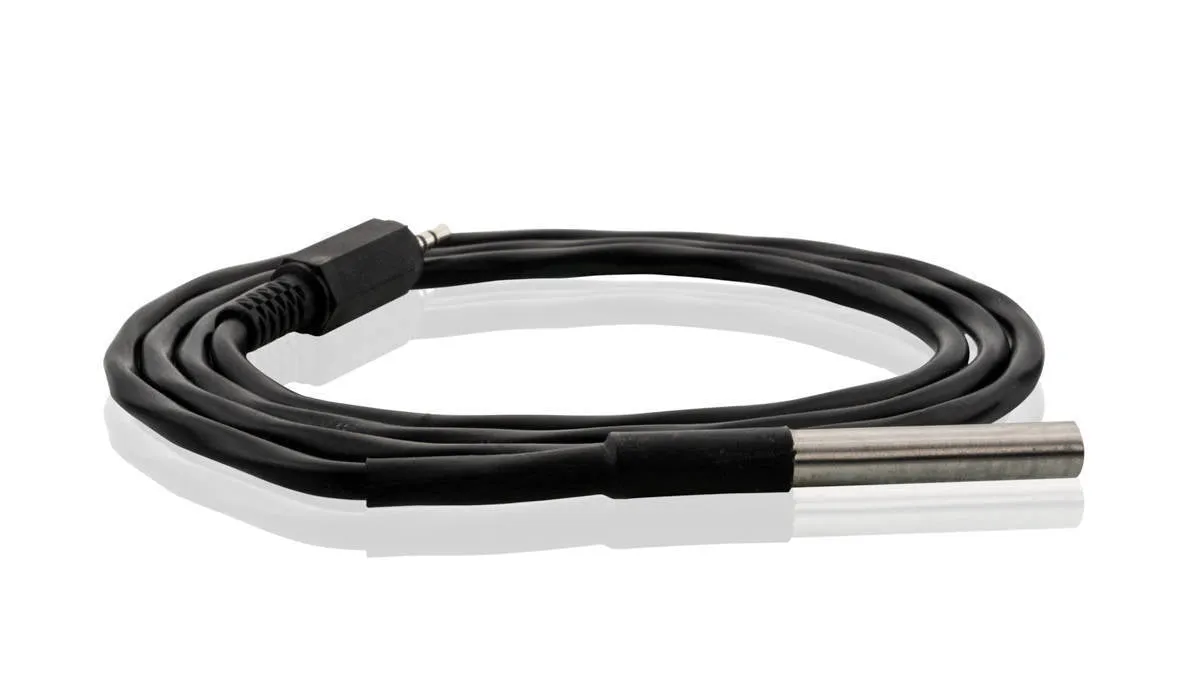

CONTACT TEMPERATURE PROBE MEASURING RANGE:
- Units: ºC (ºF)
- Accuracy: ±0.5°C from -10°C to 85°C (±0.9ºF from 14ºF to 185ºF)
- Temperature Range: -30°C to 80°C (-20°F to 175°F)
- Resolution: 0.1% over the complete range.
SPECIFICATIONS OF KIT:
