The Solar Extreme is Go Power!'s largest solar and inverter system. This system will produce enough power to run up to 3000 watts of appliances or electronics at a time and depending on your exposure to the sun, charge your battery with almost 29 amps of charging current. The Solar Elite also includes a 3000-watt Inverter Charger, an all-in-one unit that combines 3000 watts of pure sine wave AC power with a built-in battery charger and transfer switch.
This package provides you charging flexibility between the sun and shore power, as well as the ability to connect power to your 120-volt outlets. A SOLAR EXTREME system will provide you with all of the comforts of home and allow you to be truly 'off the grid'.
*Best paired with Power, or Power.

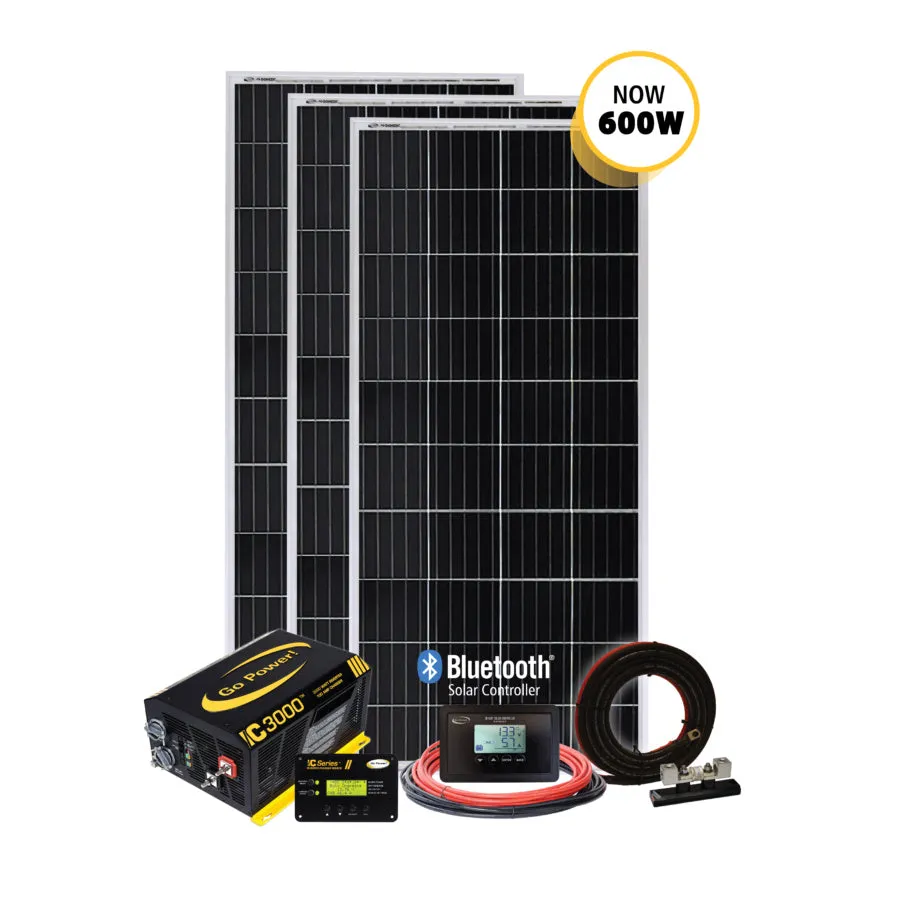

Included in the Solar Extreme System:
- 200-watt solar charging kit 2 x 200-watt expansion kits ( 2x )
- 30-amp single-bank, Bluetooth® PWM Solar Controller ()*
- 3000-watt industrial pure sine wave inverter charger for AC power ()
- IC Series Inverter Charger Remote and 50' of cable (GP-ICR-50)

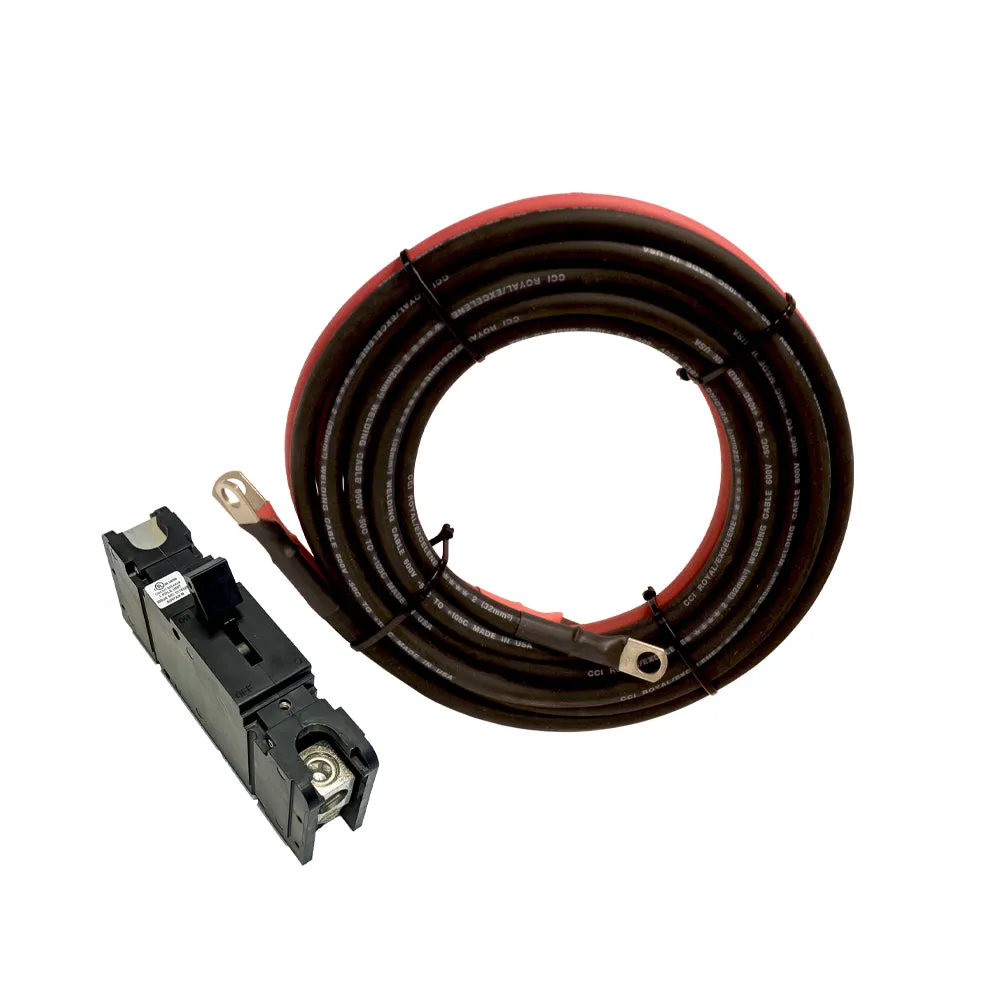

- DC inverter install kit ()

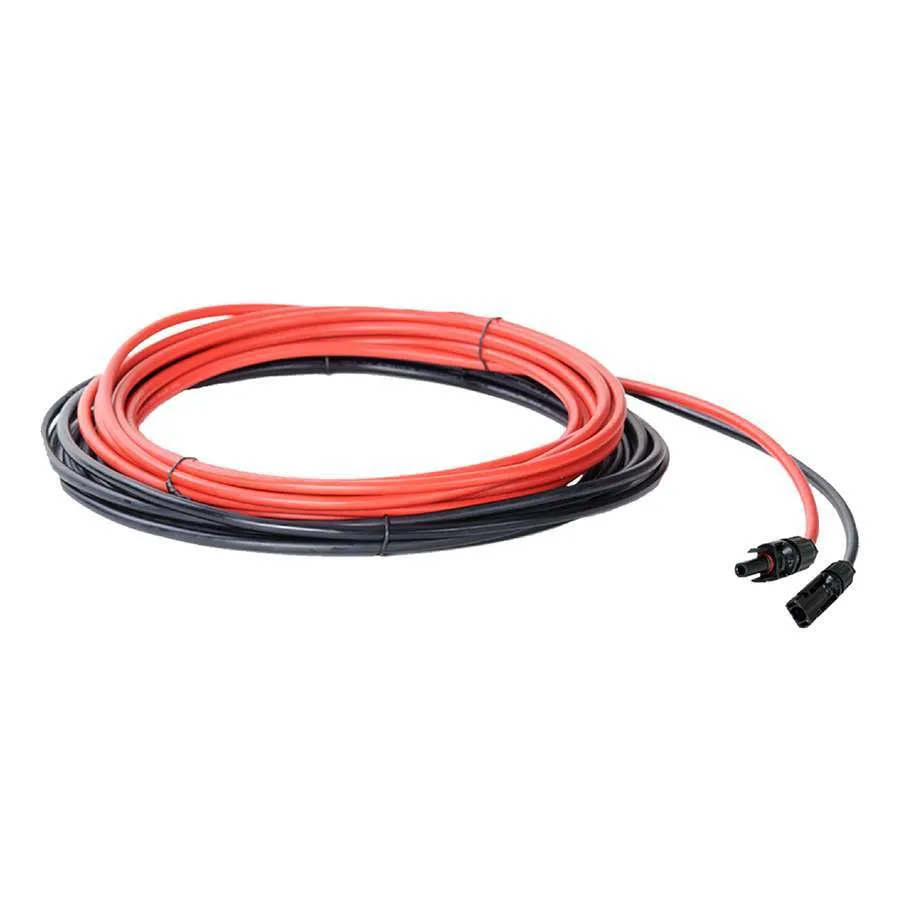

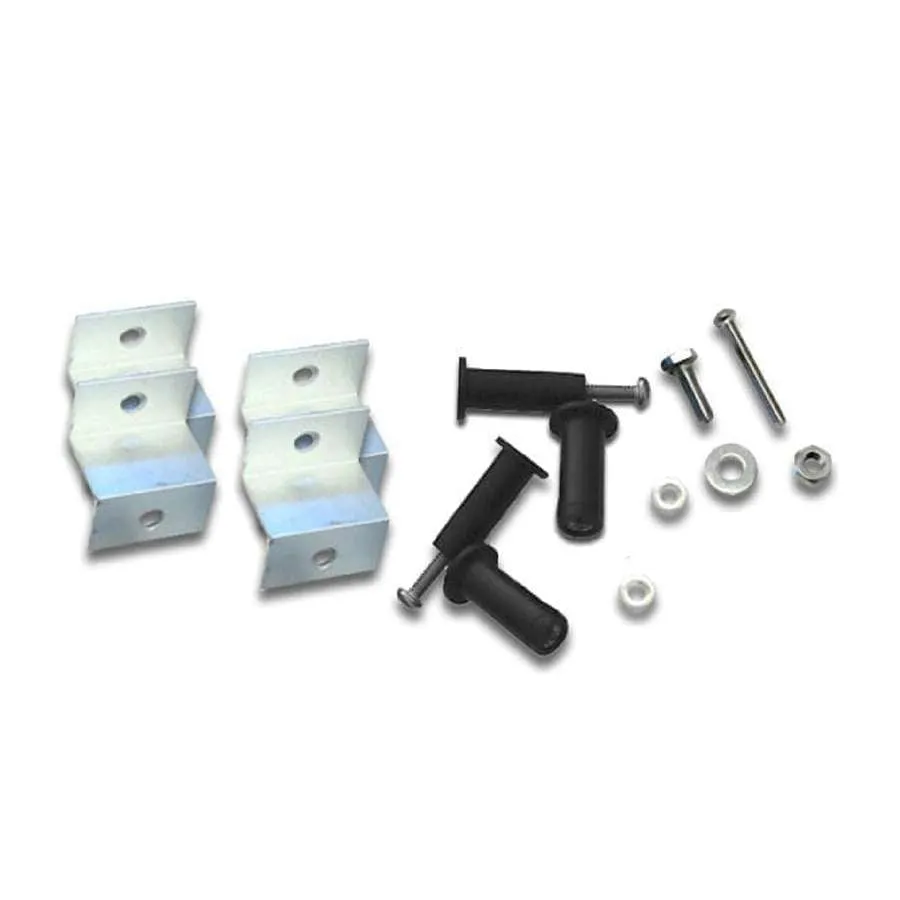

- 1 x 25' of solar cable (#10) red & 1 x 25’ of solar cable (#10) black and all mounting hardware (1 x 4-KB)
*If you have the GP-PWM-30-UL controller WITHOUT Bluetooth, please for the User Manual and Spec Sheet.
Advanced Solar Technology

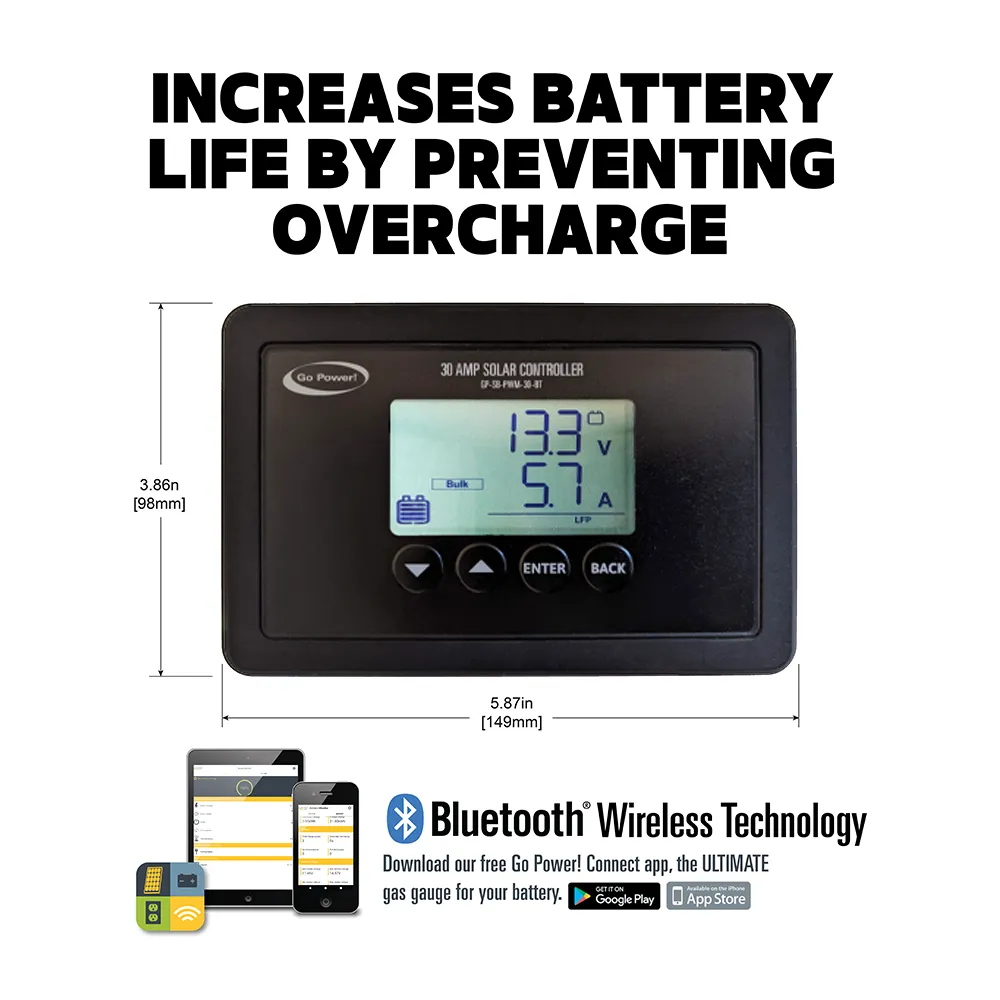

The Bluetooth®-enabled, GP-SB-PWM-30BT is a 12 volt flush-mounted, single-bank, photo-voltaic (PV) charge controller rated for a continuous solar current input of 30 amps. Easy to install with screw cover plate, and features improved Bluetooth® performance for remote system monitoring. Included in most popular kits. Available in Wired for Solar™ pre-wired RVs.
Complete Solar Inverter System Comparison
Output power | 600 W / 27.9 A | 400 W / 18.6 A | 200 W / 9.3 A |
Inverter power | 3000 W | 2000 W | 1500 W |
Solar controller | 30 A, Bluetooth®, PWM | 30 A, Bluetooth®, PWM | 30 A, Bluetooth®, PWM |
Inverter remote | On/off, LED monitoring | On/off, LED monitoring | On/off, LED monitoring |
Smart Converter Charger | 125 A | 100 A | - |
Transfer switch | 50 A | 50 A | 30 A |
Inverter Fuse and Cable Kit | 400 A fuse, 4/0 cable | 300 A fuse, 2/0 cable | 200 A fuse, #2 cable |

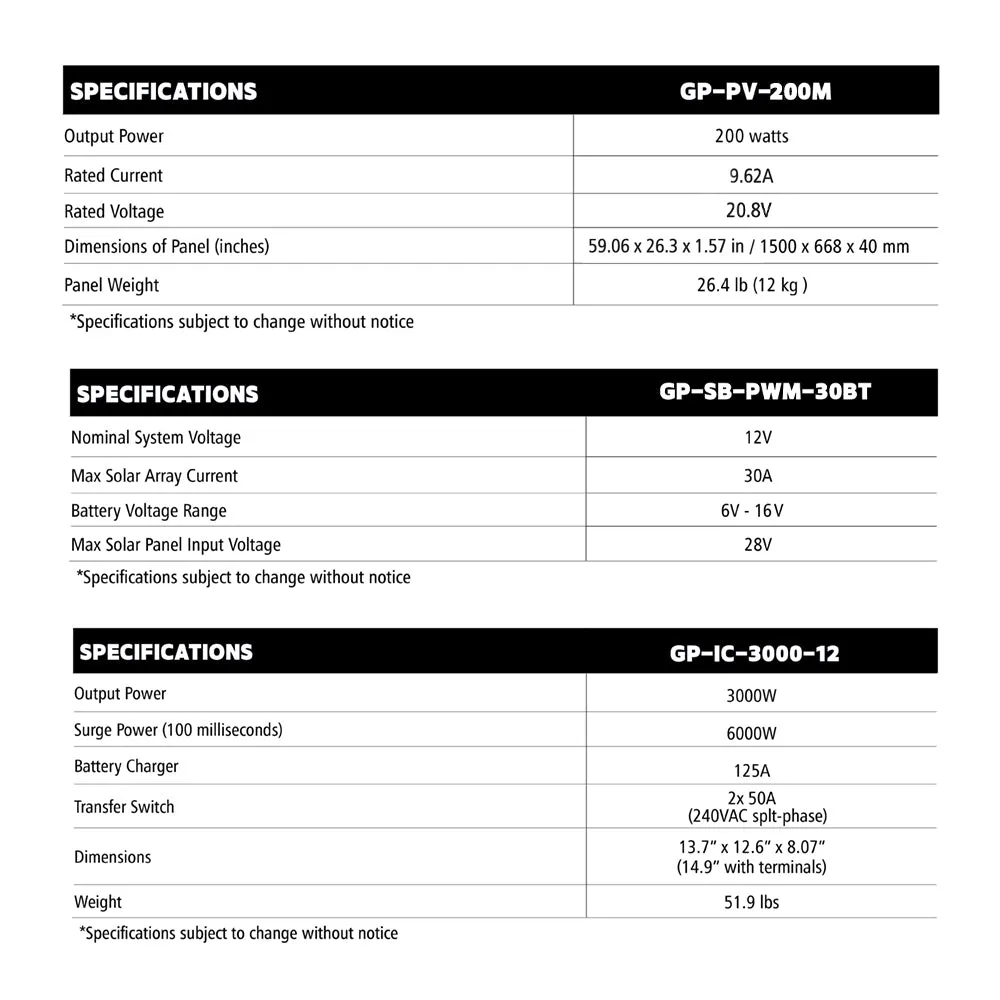

SPECIFICATIONS
Solar Modules and Controller
Solar cell type | Monocrystalline |
Output power | 200 W x3 |
Rated current | 27.9 A |
Rated DC voltage | 19.11 V |
Open-circuit voltage | 24.09 V |
Module efficiency | 16.4% |
Connectivity | MC4 connectors |
Solar controller | 30 A Dual Bank, Bluetooth®, PWM, multi-battery option, 4 stage charging, digital display, and flush mount |
Frame type | Clear anodized aluminum frame |
Certifications | CE |

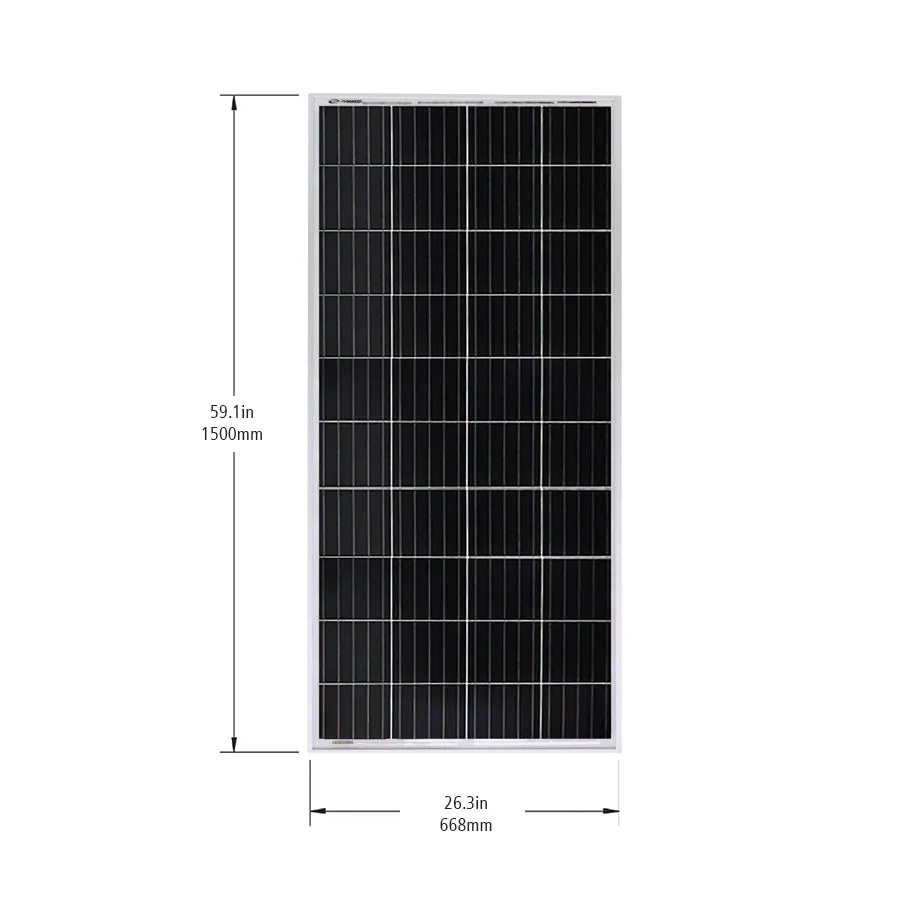

Dimensions (each) | 59.1 x 26.3 x 1.57 in / 1500 x 668 x 40 mm |
Weight (each) | 32 lbs / 14.5 kg |
Warranty | 25 years power output (module) / 5 years (controller) |
Inverter/Charger Specifications
Inverter Specifications | ||
Output Power (up to 40ºC) | 3000W | |
Surge Power (100 milliseconds) | 6000W | |
Surge Power (5 seconds) | 4800W | |
Peak Output Current | 52A | |
Continuous Output Current | 25A | |
Output Voltage | 115 VAC | |
Output Frequency | 60 Hz ±0.1Hz | |
Output Waveform | Pure Sine Wave | |
Efficiency (Peak) | 90% | |
DC Input Voltage Range | 9-17 VDC | |
Maximum Continuous DC Input Current | 400 ADC | |
No Load Power Consumption | Normal Mode:25W, Sleep Mode: <5W | |
AC Connections | Split Phase In/Dual Out, Dual In/ Dual Out |
