Name: Relay for Multi Gas Safety System
SKU: 298472

Product Details ＋

The Relay for Multi Gas Safety System is designed to trigger third-party devices like an exhaust fan, BMS, or fire panel for the This Multi Gas Safety System Relay will only work with our Multi Gas Safety System.

The Multi-Sensor Safety System is a plug and play with additional components to create a fully integrated system. See parts list below or for more information about your application.

Features

CO2 Levels: relays preset to be triggered at 5,000ppm TWA, 5,000ppm, 1.5%, and 3% CO2 to meet OSHA/NIOSH standards.
Oxygen Levels: 19.5%, 16.5% and 12% O2 to meet OSHA and CGA standards.

Multi Gas Safety System Components

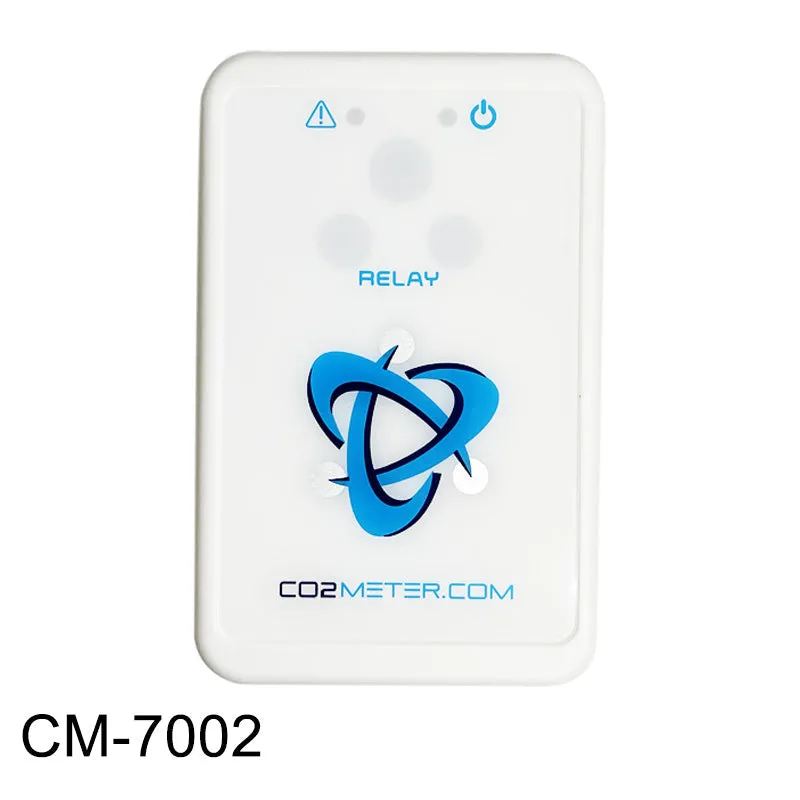

Relay for Multi Gas Safety System shown here (CM-7002)

Specifications

(QTY-3) 2A Relays in unit
Normally open or closed (adjustable)
25 ft CAT5e Cable
Connections: Input / Output / Strobe - CAT5 8 pin Connector

Electrical

POE provided from main tablet CM-7005. (see for system electrical specifications)

Warranty

1 year - See

Documents

(pdf)

Accessories

The Multi Gas Safety System starts with the CM-7005 tablet. Click on any of the add-on items it can control for more information.

- Provides a single central display unit for monitoring both carbon dioxide levels or oxygen levels across multiple locations.
) - Provides real-time CO2 readings for multiple sensors that are controlled by the CM-7005 CO2 multi sensor safety system tablet.
) - Provides real-time O2 readings for multiple sensors that are controlled by the CM-7005 CO2 multi sensor safety system tablet.
- Audible and visual strobe alarm used for interior placements.
- Audible and visual strobe alarm for exterior placements.
- Remote display that monitors all or a group of CO2 sensors.
- Provides a flashing indicator and audible alarm. Changes colors as the alarm level changes.
- Enables easy connectivity between the Remote Relay CM-7002, Strobe Tower CM-1026-5 or any external device that can be triggered by a relay.
- 3/8 inch connector on electronic solenoid enables remote shut off during gas leak. Plugs into Remote Relay CM-7002 or Main Tablet relay.
- 1/2 inch connector on electronic solenoid enables remote shut off during gas leak. Plugs into Remote Relay CM-7002 or Main Tablet relay.
Calibration Gas - Because of MDOT regulations, calibration gases must be shipped from a certified gas supplier. You can order calibration gas from your local supplier or you can order the following products from CalGasDirect.com
