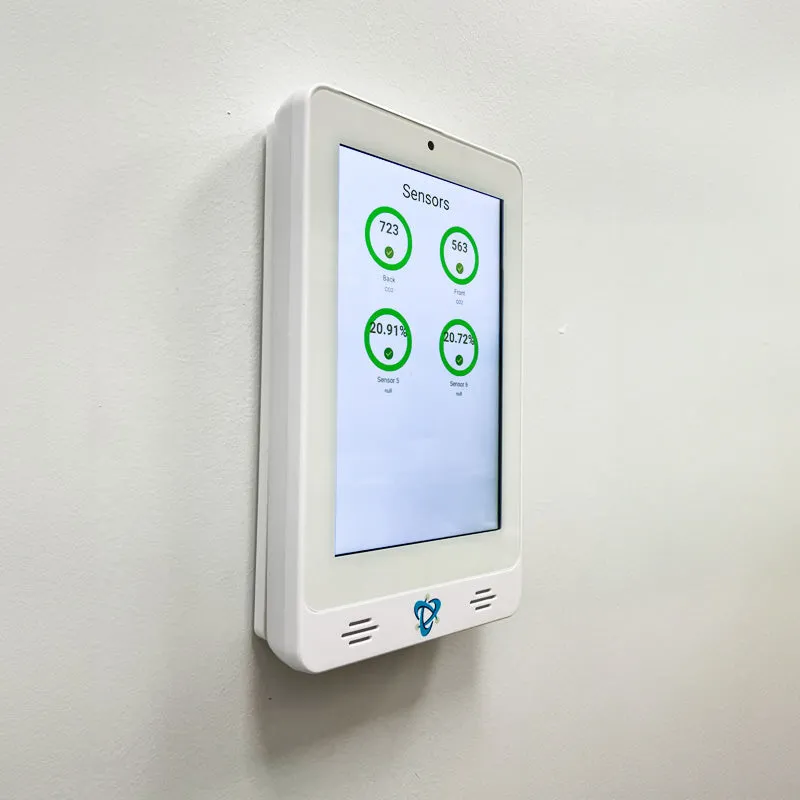

The Mini Display Tablet for Multi Gas Safety System is designed to provide an added remote display option in conjunction with the main CM-7005 tablet. This device works cohesively with our
Features
- Remote CO2 or oxygen level display at doorways
- Visual Alarm display
- 7" Vertical Capacitive Touchscreen
The Multi-Sensor Safety System is a plug and play with additional components to create a fully integrated system. See parts list below or for more information about your application.
Multi Gas Safety System Components

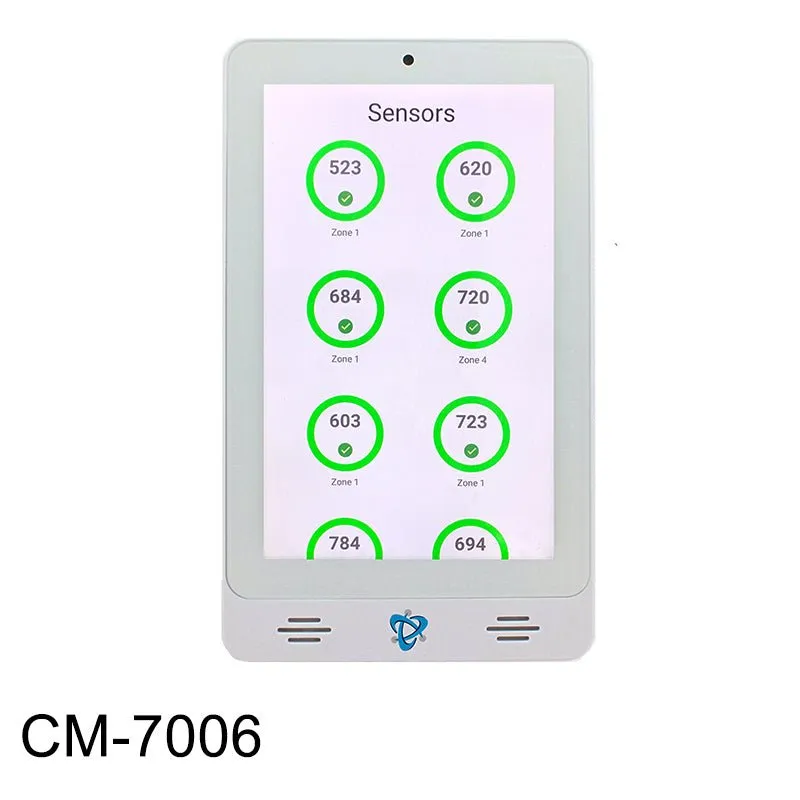

- Mini Display Tablet for Multi Gas Safety System shown here (CM-7006)
Specifications
Mechanical
- 7" Vertical Capacitive Touchscreen
- Dimensions: 5" w x 8.3" l x 2.75 " h
- (QTY-1) CAT5 Powered Ethernet Connector Ports
- USB Type A Connector (Used for Troubleshooting or Updates Only)
-
POE provided from main tablet CM-7005. (see for system electrical specifications)
Warranty
- 1 year - See
Documents
(pdf)
(pdf)
Accessories
The Multi Gas Safety System starts with the CM-7005 tablet. Click on any of the add-on items it can control for more information.
- - Provides a single central display unit for monitoring both carbon dioxide levels or oxygen levels across multiple locations.
- ) - Provides real-time CO2 readings for multiple sensors that are controlled by the CM-7005 CO2 multi sensor safety system tablet.
- ) - Provides real-time O2 readings for multiple sensors that are controlled by the CM-7005 CO2 multi sensor safety system tablet.
- - Triggers third-party devices like an exhaust fan, building management system, fire panel or remotely notify security of a high CO2 alarm. Includes CBL-7002 below.
- - Audible and visual strobe alarm used for interior placements.
- - Audible and visual strobe alarm for exterior placements.
- - Provides a flashing indicator and audible alarm. Changes colors as the alarm level changes.
- - Enables easy connectivity between the Remote Relay CM-7002, Strobe Tower CM-1026-5 or any external device that can be triggered by a relay.
- - 3/8 inch connector on electronic solenoid enables remote shut off during gas leak. Plugs into Remote Relay CM-7002 or Main Tablet relay.
- - 1/2 inch connector on electronic solenoid enables remote shut off during gas leak. Plugs into Remote Relay CM-7002 or Main Tablet relay.
- Calibration Gas - Because of MDOT regulations, calibration gases must be shipped from a certified gas supplier. You can order calibration gas from your local supplier or you can order the following products from CalGasDirect.com
