Product Details
＋
The CO2 Sensor for Multi Gas Safety System is designed to provide carbon dioxide level monitoring or leak alarms as part of our .
The Multi Gas Safety System is a plug and play system providing a full range of components to measure CO2 and oxygen levels indoors. It includes horns, strobes and everything you need to create a complete monitoring system that meets all government standards.
See the Multi Gas Safety System below for each component or for more information on your application.
Features
- Add any Number of Additional CO2 sensors as Your Business Grows
- All Alarm and Notification Settings can be Customized
- Meets NFPA, IFC, and NBIC Requirements | OSHA and NIOSH TWA standards
- Meets all local municipality inspection codes and requirements
Multi Gas Safety System Parts

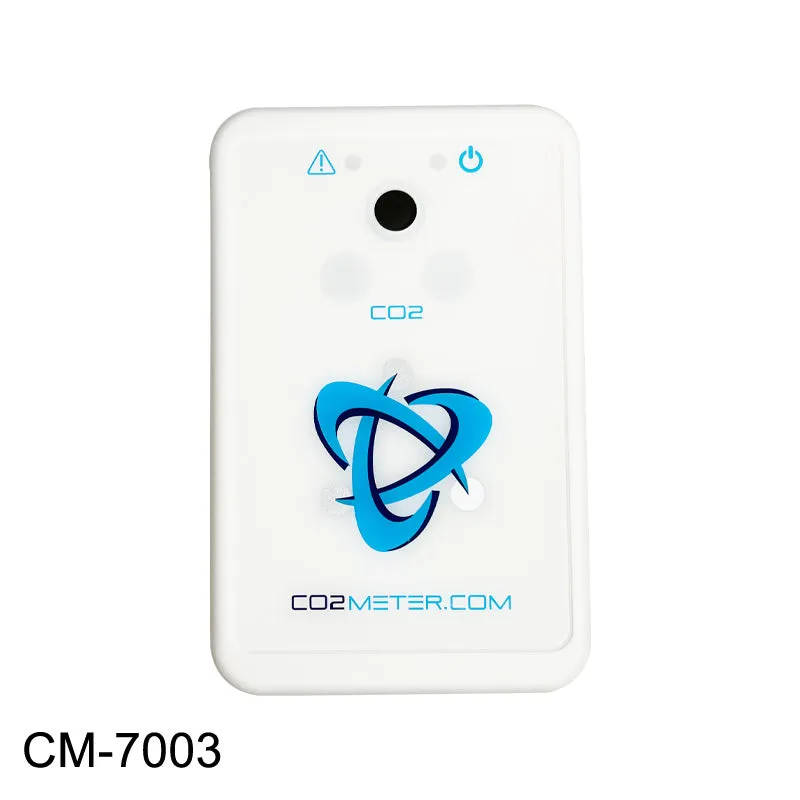

- CO2 Sensor for Multi Gas Safety System shown here (CM-7003)
Specifications
- CO2 Measurement Range: 0-5% (0-50,000 ppm)
- CO2 Sensor: NDIR (Non-Dispersive Ifrared)
- Alarms: 5,000 TWA, 5,000 Instantaneous, 1.5%, 3% (fully customizable)
- Calibration: Zero with Nitrogen or Factory Calibration
- Sensor Life Expectancy: > 15 years
- Operating Temperature: 32-122° F (0-50° C)
Electrical
- POE provided from main tablet CM-7005. (see for system electrical specifications)
Warranty
- 1 year - See
Documents
(pdf)
Accessories
The Multi Gas Safety System starts with the CM-7005 tablet. Click on any of the add-on items it can control for more information.
- - Provides a single central display unit for monitoring both carbon dioxide levels or oxygen levels across multiple locations.
- ) - Provides real-time O2 readings for multiple sensors that are controlled by the CM-7005 CO2 multi sensor safety system tablet.
- ) - Triggers third-party devices like an exhaust fan, building management system, fire panel or remotely notify security of a high CO2 alarm. Includes CBL-7002 below.
- ) - Audible and visual strobe alarm used for interior placements.
- )- Audible and visual strobe alarm for exterior placements.
- ) - Remote display that monitors all or a group of CO2 sensors.
- - Provides a flashing indicator and audible alarm. Changes colors as the alarm level changes.
- - Enables easy connectivity between the Remote Relay CM-7002, Strobe Tower CM-1026-5 or any external device that can be triggered by a relay.
- - 3/8 inch connector on electronic solenoid enables remote shut off during gas leak. Plugs into Remote Relay CM-7002 or Main Tablet relay.
- - 1/2 inch connector on electronic solenoid enables remote shut off during gas leak. Plugs into Remote Relay CM-7002 or Main Tablet relay.
- Calibration Gas - Because of MDOT regulations, calibration gases must be shipped from a certified gas supplier. You can order calibration gas from your local supplier or you can order the following products from CalGasDirect.com
