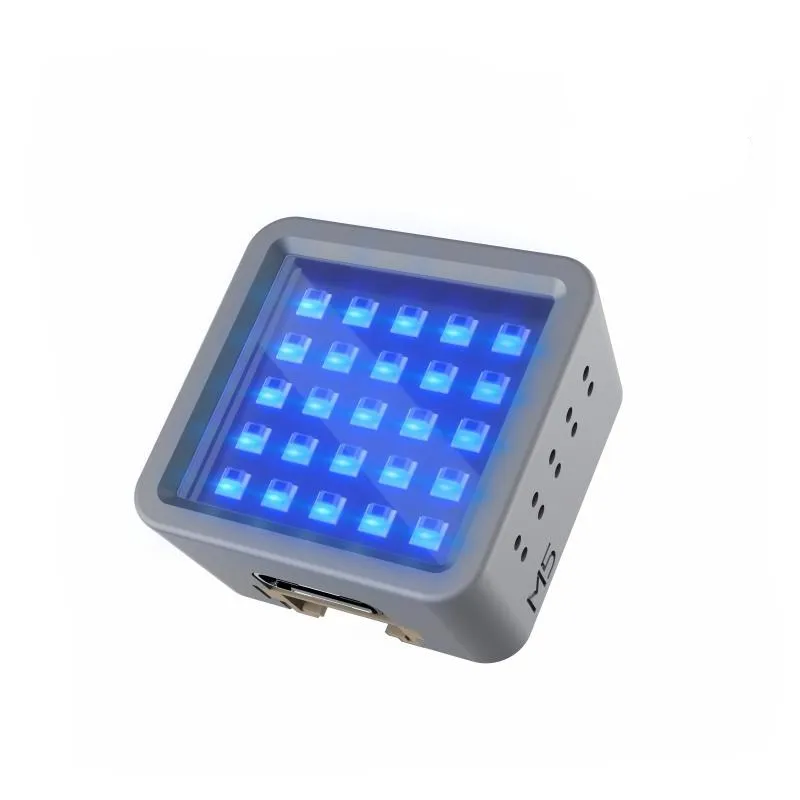

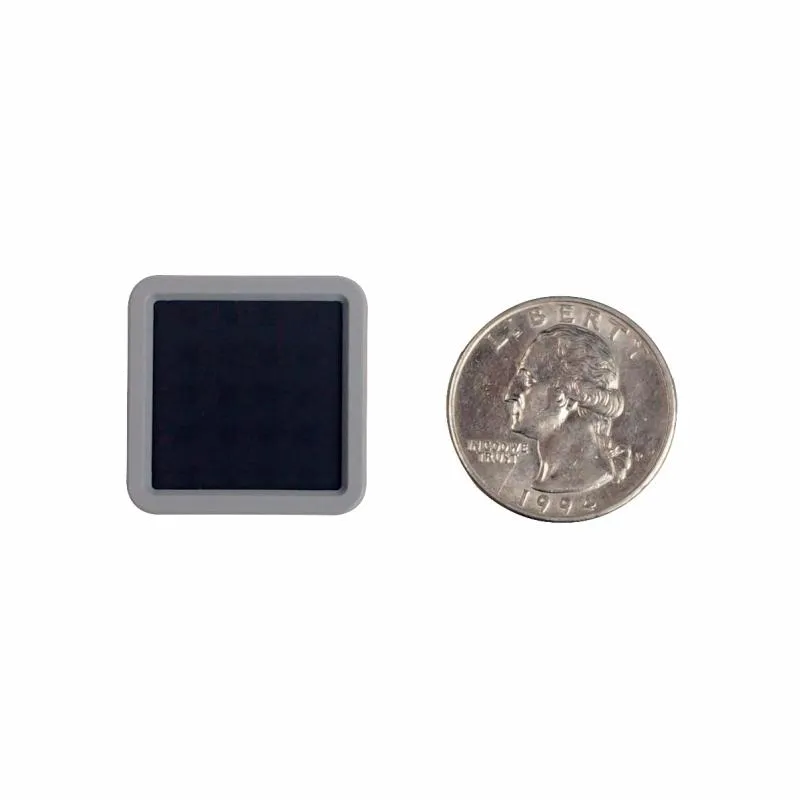

Tiny ESP32 powered dev kit with a built in 5x5 RGB LED matrix, which also functions as a programmable button.  At only 24x24mm, it's great for fitting into projects where space is at a premium!

These little fellas would be super for incorporating into all sorts of projects which would benefit from a smart, wifi connected button that's capable of showing visual feedback. You could set up an , use one as as , or as a calendar connected busy light/doorbell for your home office.

It's programmable via Arduino IDE, but also by the graphical drag and drop programming interface UIFlow, ideal for folks new to ESP32 microcontrollers. If you don't need the LEDs, we sell the basic ATOM , and we also stock a compatible !

. M5Stack boards come with a simple test sketch installed but no firmware - if you want to program it with UIFlow you will first need to .

Product Features

• ESP32-PICO-D4 chip
• Onboard wifi and Bluetooth
• 4MB of integrated SPI flash memory
• Programmable button
• 5 * 5 RGB LED matrix panel
• Built-in Infra-red LED
• Built-in MPU6886 Inertial Sensor
• Six GPIO connectors for attaching to external sensors
• PH2.0 interface
• On-board USB-C interface for programming
• Program Platform:  /

NOTE: The brightness of RGB LED is limited to 20. Setting it higher risks damaging the LED and acrylic screen.

One M2 screw hole is provided on the back for mounting the board.

Applications

• Internet of things terminal controller
• IoT node
• Wearable peripherals

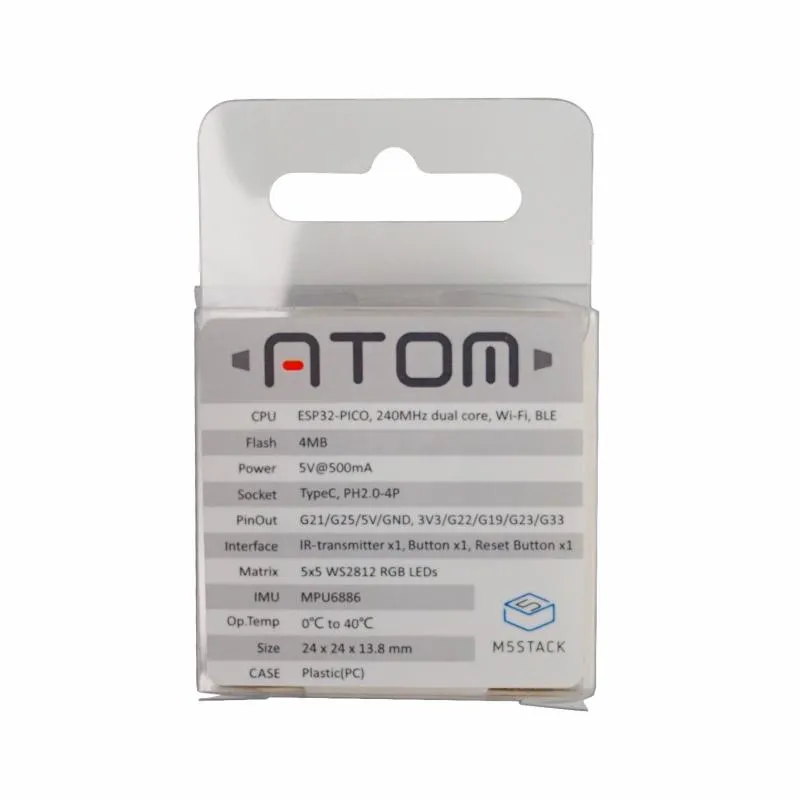

Specification
