FEATURES

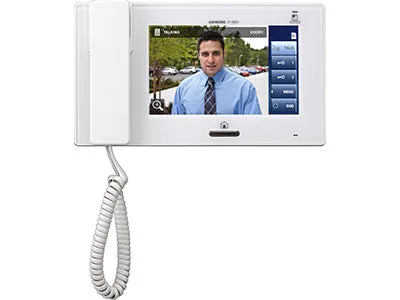

• 7″ Touchscreen LCD
• Hands-free (VOX) or handset (duplex) communication
• Selective door release controls
• Room to room calling
• Monitor door station with the touch of a button
• Hearing aid T-Mode compatibility
• Digital pan, tilt, and zoom
• Brightness control
• Connects to JP-4MED or JP-8Z with a single Cat-5e cable
• Internal / Built-In picture memory: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting

SPECS
Power consumption: 340mA (max.)
Video Monitor: 7" TFT color LCD
Type of communication: Open voice hands-free auto-voice actuation, Handset Simultaneous Communication

Wire Type:
Door Station to Master Station: 2-cond., mid cap, solid, non shielded - use Aiphone #871802
Power Supply to Master Station: 2-cond., mid cap, solid, non shielded - use Aiphone #871802
Master Station to JP-8Z/Sub Master: Cat-5e or Cat-6

Wire Distance:
Door Station to Master Station: 165' (22AWG), 330' (18AWG)
Master Station to Distribution Adaptor: 650'
Power Supply to Master Station: 16'(22AWG) 33'(18AWG)

Door Release Contact: 24V AC/DC, 0.5A (N/O dry closure contact)
Temperature Rating: 32-104°F (0-40°C)
Dimensions: 5-11/16" H x 10-1/16" W x 1-7/8" D
