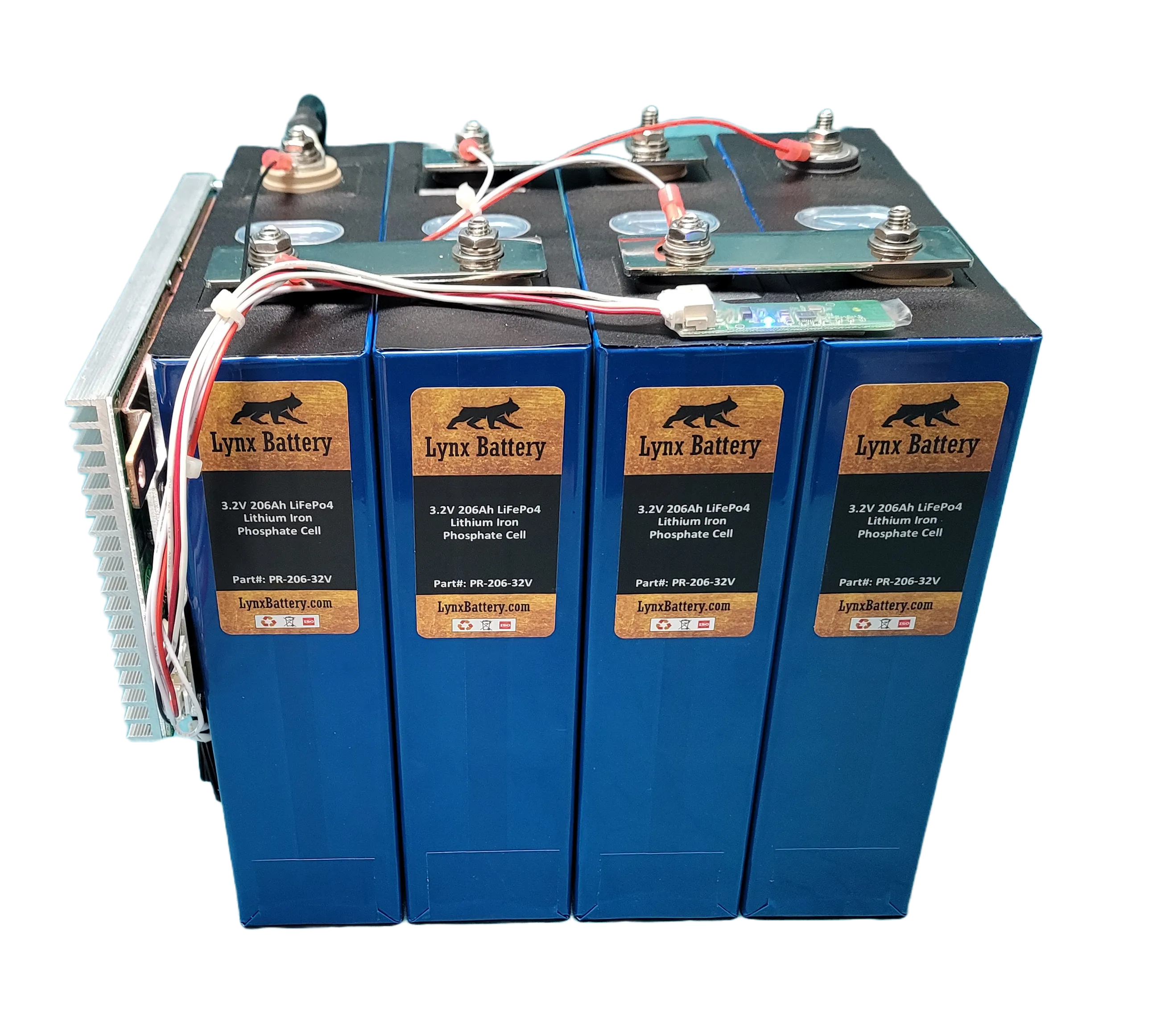

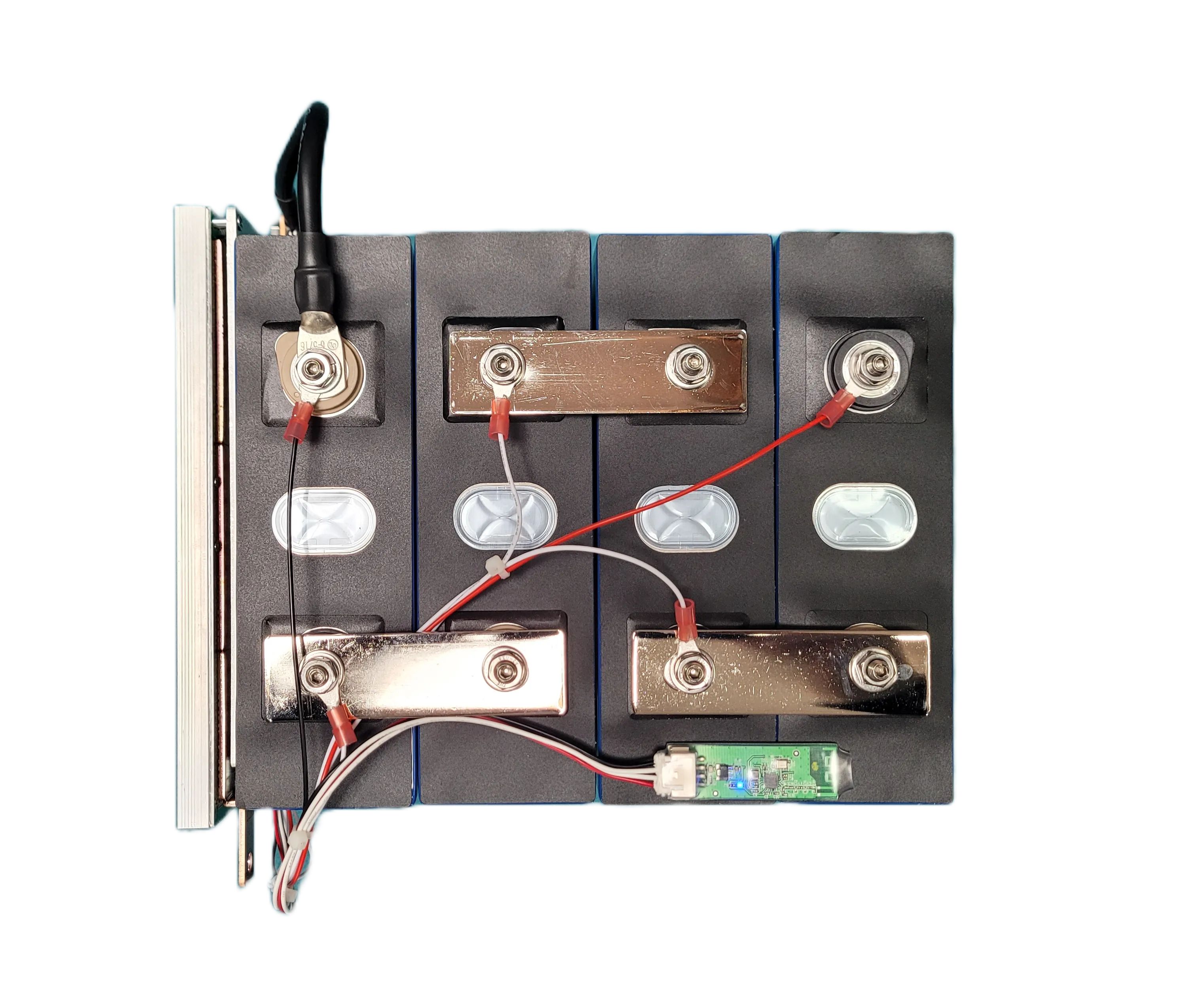

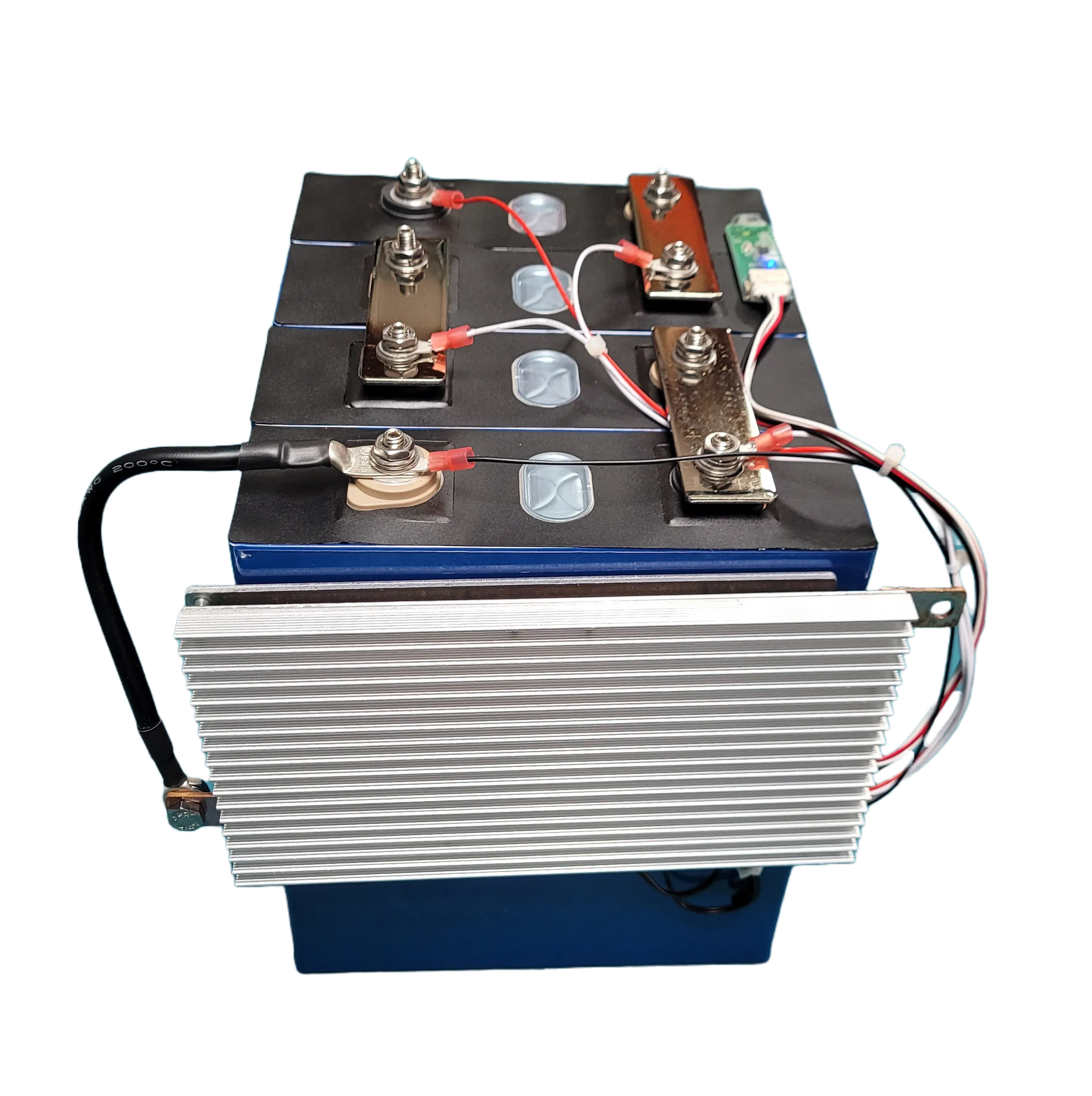

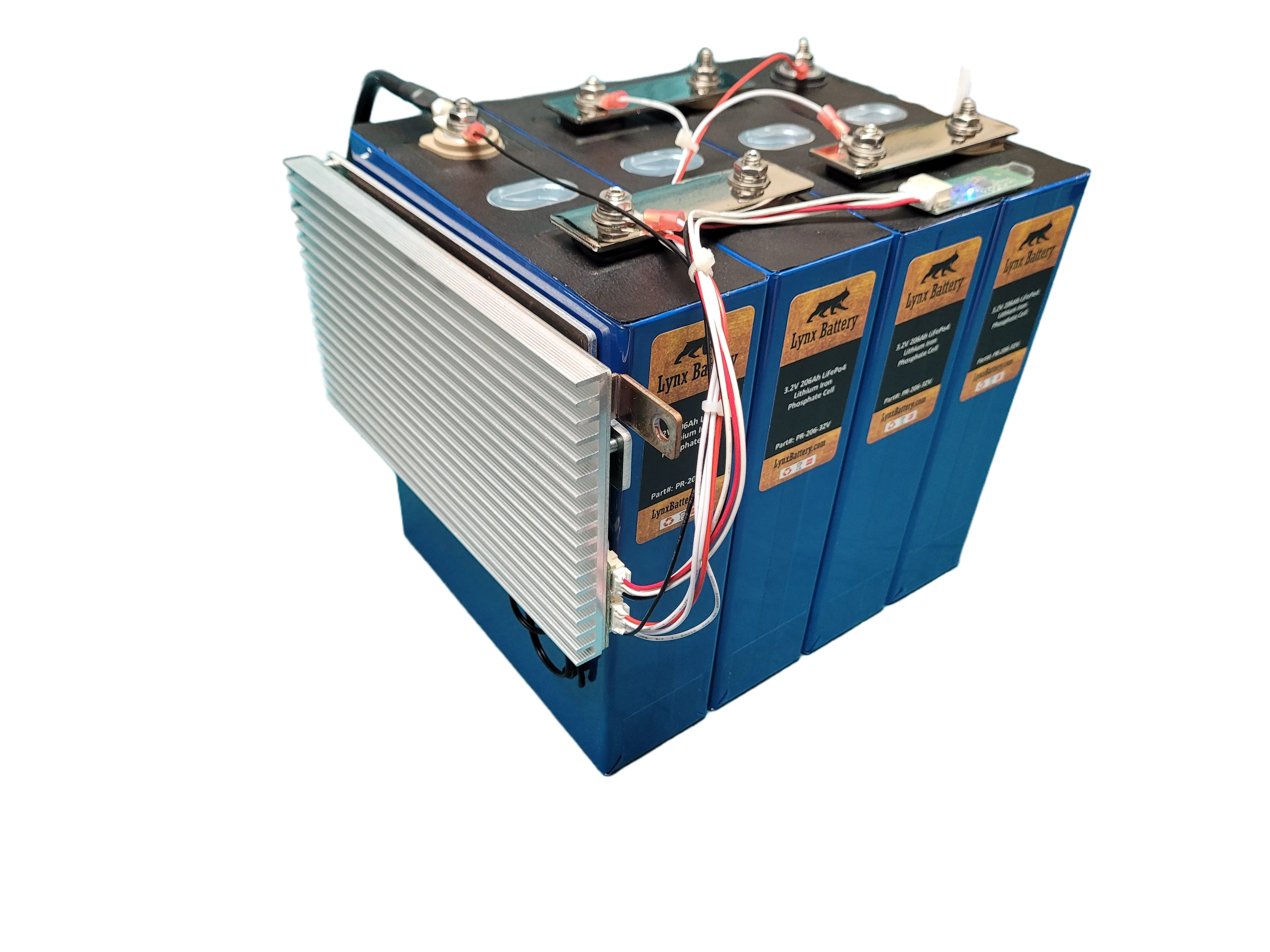

Includes 4 - Prismatic 3.2V 206Ah LiFePO4 Cells with JBD Bluetooth 4S 200A BMS, 3 Heavy Duty Bus Bars, 8 Lug Nuts, 2 - 36" Zip Ties, and 1/2" x 36" 3M VHB Tape and instruction manual.
Built with quality materials and easy-to-use Lynx battery rechargeable prismatic cells can be mounted in any orientation, even upside down, and weighing only 38.8 lbs. It is half the weight of their lead-acid/ AGM battery counterparts.
Battery Specifications:
Nominal Voltage: 12VCapacity: 206AhWeight: 38.8 lbs, (17.6 Kg)Size: 10”x7”x8.5” (lxwxh)Cycle Life: 3000/3 years
Prismatic Cell Specifications
Nominal Voltage 3.2VCapacity 200Ah
Core size 6.9" x 2.12" x 7.9" (lxwxh)Cell Weight 9.2 lbsCharging Current; Standard Charge 0.5C, Max Charge 1CDischarging Rate; Continuous 1C, Max 2CCut-off Voltage; Charging 3.65V Discharging 2.5V.Recommended SOC Window SOC 10%~90%Internal Resistance 0.4mΩ Fresh Cell, 30% SOCWorking Temperature; Charging 0~60°C Discharging -30~60℃,Storage Temperature; ≤1 month: -10–45℃, ≤3 month: 0–30℃, ≤6 month: 20±5℃
Bluetooth 200 Amp Battery Management System (BMS) Specifications:Power balancing 2.65VBalance Release Volt 2.65VBalance Current 40 /-5mAOver-Discharge Detect Volt 2.8 /-0.05VOver-Discharge Detect Delay 0.5VOver-Discharge Volt Release 3.0 /-0.05VOver Current Detect Volt 150mVOver Current Detect Delay 9MSShort Circuit Detect Delay 250uSMain Circuit Resistor ≤10mΩWorking current ≤100uAWorking Temp Range -20/ 80ºC
Additional Applications:
Lithium-Ion prismatic deep cycle battery 12V 200Ah is ideal and preferred for the following applications.
Solar & wind powerOff-grid applicationsRV, Marine, Golf cartsElectric vehiclesDIY electric storageBackup power systemsEmergency lighting systemsHandling equipmentUninterrupted standby power supply systems
